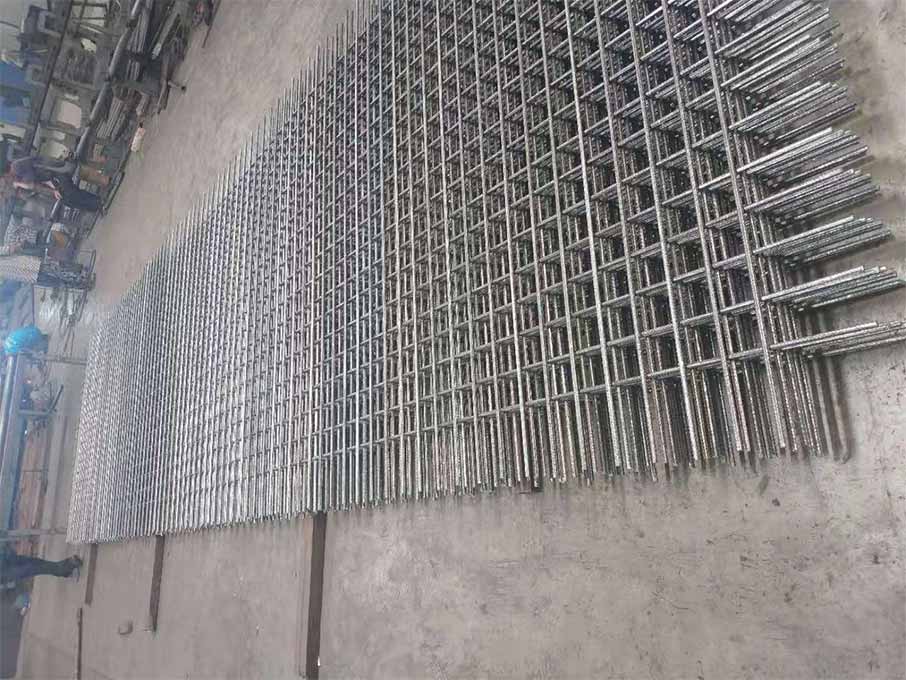

Special concrete reinforcing mesh
Heyou special concrete reinforcing meshes are produced by SD grade B500C(ELOT 1421-3) of steel bars ensures accuracy in geometry and enables easy forming.
PRODUCT DESCRIPTION
Heyou special concrete reinforcing meshes are produced by SD grade B500C(ELOT 1421-3) of steel bars ensures accuracy in geometry and enables easy forming.
Special concrete reinforcing mesh has flexibility dimentions such as wire, spacing of reinforcement,sheet size etc. Please see below table:
| Production Range | |||
| FROM | TO | ||
| DIAMETER OF LINE REBARS | (mm) | Ø8 | Ø25 |
| DIAMETER OF CROSS REBARS | (mm) | Ø6 | Ø16 |
| LENGTH OF MESH | (m) | 1.0 | 12.0 |
| WIDTH OF MESH | (m) | 1.0 | 3.6 |
| DISTANCE BETWEEN OPPOSITE LINE REBARS | (m) | - | 3.2 |
| SPACE BETWEEN LINE REBARS | (mm) | from 75mm and up with stable or variable pitch | |
| SPACE BETWEEN CROSS REBARS | (mm) | from 75mm and up with stable or variable pitch | |
| EDGE LENGTH | (mm) | according to request | |
Application of special concrete reinforcing mesh as below:
1. COLUMNS
2. WALLS
3. BEAMS
4. FOUNDATION BEAMS
5. PREFABRICATED BEAMS
6. SLABS
7. FOUNDATION SLABS
8. ZOELLNER SLABS
9. FOOTINGS
10. DUCTS – PIPELINES
11. TUNNELS
