SD Stirrup Mesh / reinforcement mesh / reinforcing mesh / reinforced mesh
SD Stirrup mesh is made of straight rebars of which grade is BST500S of Standard DIN488 in diameters8mm, 10 and 12mm, which used on beam, column, and shear wall stirr...
PRODUCT DESCRIPTION

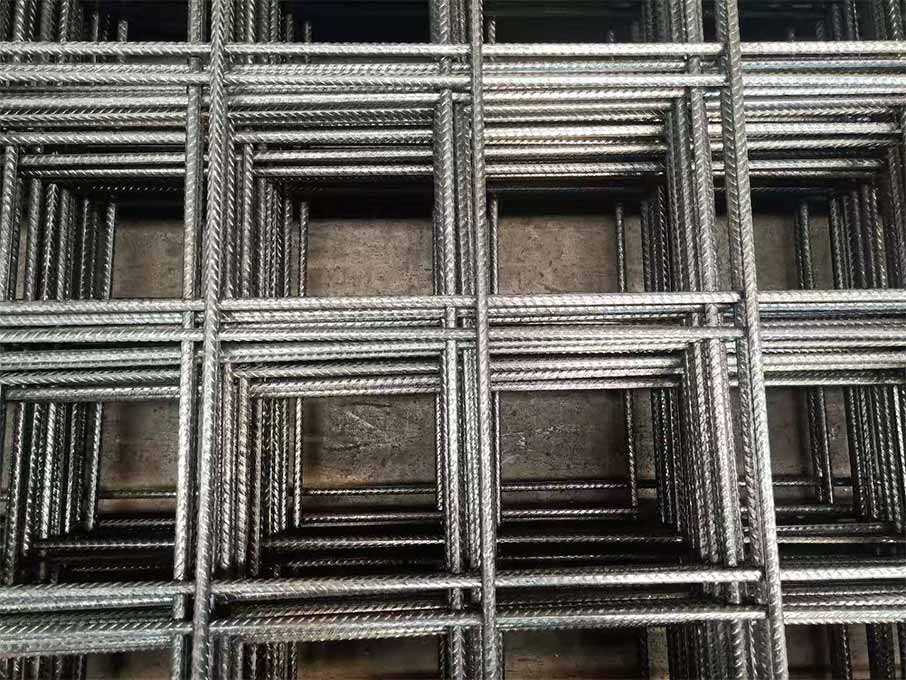

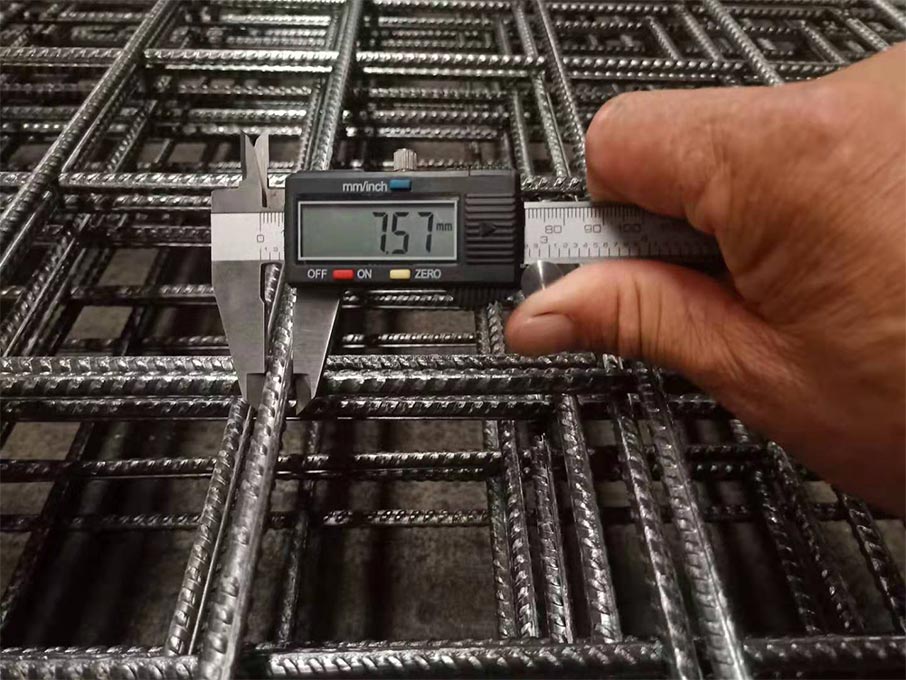

SD Stirrup mesh is made of straight rebars of which grade is BST500S of Standard DIN488 in diameters8mm, 10 and 12mm,which used on beam, column, and shear wall stirrups. The stirrups cages are formed of SD stirrup mesh on site, which has high precision in geometry, stirrup distance and stability. from SD stirrup mesh to be stirrup cages which is fast speed,accrurate and covers most of the cross-section geometries of beams, columns and shear walls. It has high precision in design execution, high production efficiency and good overall quality.
| CHARACTERISTICS | |||||||||
| TYPE: | Prefabricated mesh for stirrup reinforcement for columns, beams and shear walls. | ||||||||
| STEEL GRADE: | Line wires: concrete reinforcing steel BSt500S according to DIN 488, diameter Ø8, Ø10, and Ø12Cross wires: SAE 1010 wire rod according to ASTM A5 10M | ||||||||
| FORM - DIAMETER: | Sheets length from 0.80 to 3.00m and width 2.60 & 3.00m | ||||||||
| PACKING - WEIGHT: | Sheet stacks, weight from 9.60 to 73.30kg per sheet, depending on dimensions and type | ||||||||
| Theoretical Weights and Bundles of SD Stirrup Reinforcement Mesh | |||||||||
| Ø8 | 100mm spacing | 125mm spacing | |||||||
| SHEET LENGTH (m) | X | SHEET WIDTH (m) | Sheet Weight (kg) | No. of Sheets per Bundle | Theor. Bundle Weight (kg) | Sheet Weight (kg) | No. of Sheets per Bundle | Theor. Bundle Weight (kg) | |
| 0.80 | Χ | 3.00 | 11.48 | 50 | 574 | 9.60 | 40 | 384 | |
| 1.00 | Χ | 3.00 | 13.85 | 50 | 693 | 10.84 | 40 | 434 | |
| 1.20 | Χ | 3.00 | 16.22 | 50 | 811 | 13.37 | 40 | 535 | |
| 1.40 | Χ | 3.00 | 18.59 | 50 | 930 | 15.27 | 40 | 611 | |
| 1.60 | Χ | 3.00 | 21.62 | 50 | 1,081 | 17.83 | 40 | 713 | |
| 1.80 | Χ | 3.00 | 23.99 | 50 | 1,200 | 19.73 | 40 | 789 | |
| 2.00 | Χ | 3.00 | 27.03 | 50 | 1,352 | 22.29 | 40 | 892 | |
| 2.20 | Χ | 3.00 | 29.40 | 50 | 1,470 | 24.19 | 40 | 968 | |
| 2.40 | Χ | 3.00 | 31.77 | 50 | 1,589 | 26.08 | 40 | 1,043 | |
| 2.60 | Χ | 3.00 | 34.81 | 25 | 870 | 27.98 | 25 | 699 | |
| 2.80 | Χ | 2.60 | 32.22 | 25 | 806 | 26.11 | 25 | 653 | |
| 3.00 | Χ | 2.60 | 34.85 | 25 | 871 | 27.77 | 25 | 694 | |
| Theoretical Weights and Bundles of SD Stirrup Reinforcement Mesh | ||||||||
| Ø10 | 100mm spacing | 125mm spacing | ||||||
| SHEET LENGTH (m) | X | SHEET WIDTH (m) | Sheet Weight (kg) | No. of Sheets per Bundle | Theor. Bundle Weight (kg) | Sheet Weight (kg) | No. of Sheets per Bundle | Theor. Bundle Weight (kg) |
| 1.00 | Χ | 3.00 | 20.51 | 50 | 1,026 | - | - | - |
| 1.20 | Χ | 3.00 | 24.21 | 50 | 1,211 | 19.77 | 40 | 791 |
| 1.40 | Χ | 3.00 | 27.91 | 50 | 1,396 | 22.73 | 40 | 909 |
| 1.60 | Χ | 3.00 | 32.28 | 50 | 1,614 | 26.36 | 40 | 1,054 |
| 1.80 | Χ | 3.00 | 35.98 | 50 | 1,799 | 29.32 | 40 | 1,173 |
| 2.00 | Χ | 3.00 | 40.35 | 50 | 2,018 | 32.95 | 40 | 1,318 |
| 2.20 | Χ | 3.00 | 44.05 | 40 | 1,762 | 35.91 | 40 | 1,436 |
| 2.40 | Χ | 3.00 | 47.75 | 40 | 1,910 | 38.87 | 40 | 1,555 |
| 2.60 | Χ | 3.00 | 52.12 | 25 | 1,303 | 41.83 | 25 | 1,046 |
| 2.80 | Χ | 2.60 | 48.38 | 25 | 1,210 | 39.17 | 25 | 979 |
| 3.00 | Χ | 2.60 | 52.17 | 25 | 1,304 | 41.76 | 25 | 1,044 |
| Theoretical Weights and Bundles of SD Stirrup Mesh | |||||
| Ø12 | 100mm spacing | ||||
| SHEET LENGTH (m) | X | SHEET WIDTH (m) | Sheet Weight (kg) | No. of Sheets per Bundle | Theor. Bundle Weight (kg) |
| 1.20 | Χ | 3.00 | 39.97 | 25 | 849 |
| 1.40 | Χ | 3.00 | 39.29 | 25 | 982 |
| 1.60 | Χ | 3.00 | 45.29 | 25 | 1,132 |
| 1.80 | Χ | 3.00 | 50.62 | 25 | 1,266 |
| 2.00 | Χ | 3.00 | 56.61 | 25 | 1,415 |
| 2.20 | Χ | 3.00 | 61.94 | 25 | 1,549 |
| 2.40 | Χ | 3.00 | 67.27 | 25 | 1,682 |
| 2.60 | Χ | 3.00 | 73.26 | 25 | 1,832 |
| 2.80 | Χ | 2.60 | 68.11 | 25 | 1,703 |
| 3.00 | Χ | 2.60 | 73.30 | 25 | 1,833 |
Mesh of 2.80m and 3.00m lengths, is also produced with 3.00m width
