SD Reinforcing Mesh Q131 / Q188 / Q221 / Q295 / Q378 / Q443 / Q513 / Q670 / R378 / R443 / R513
Heyou's SD Reinforcing Mesh was produced by the raw material:B500A,B500B at the Heyou's plants (Anping). SD reinforcing mesh is fabricated according to the ...
PRODUCT DESCRIPTION
Heyou's SD Reinforcing Mesh was produced by the raw material:B500A,B500B at the Heyou's plants (Anping). SD reinforcing mesh is fabricated according to the standard DIN 488.

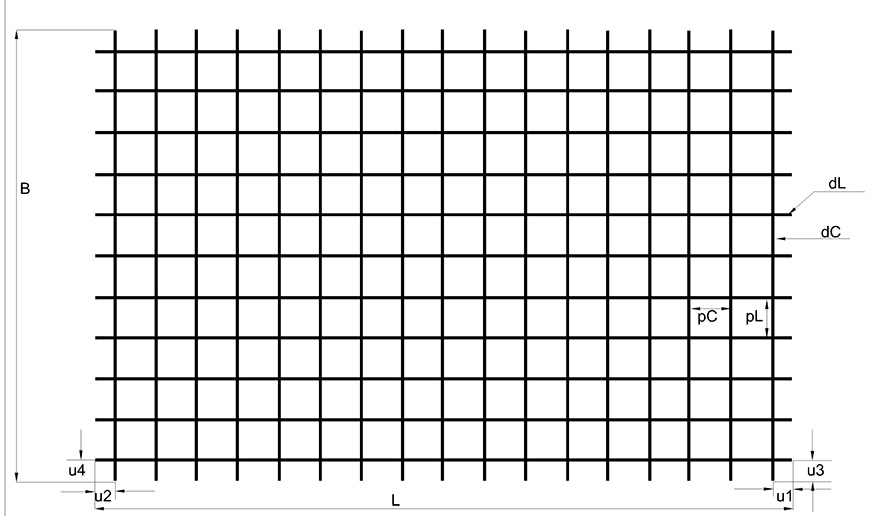

The skatch of SD reinforcing mesh as below:
 | |
NL= Number of longitudinal bars PL= pitch of longitudinal bars dL= diameter of longitudinal bars NC=Number of transverse bars | L= length of longitudinal bar B=Length of transverse bar u1=Overhang of longitudinal bars u2=Overhang of longitudinal bars |
The specification of SD reinforcing mesh accordance with DIN 488 as below:
| WIRE MESH - DIMENSIONS AND WEIGHTS | ||||||||
| MESH TYPES | WIRE DIAMETERS | WIRE DISTANCES | SHEET DIMENSIONS | WEIGHTS | ||||
| dL mm | dC mm | pL mm | pC Wires mm | Length "L" mm | Width "B" mm | kg/m2 | kg/sheet | |
| R84 | 4.0 | 4.0 | 150 | 250 | 6.000 | 2.150 | 1.098 | 14.158 |
| R92 | 4.2 | 4.2 | 150 | 250 | 6.000 | 2.150 | 1.152 | 14.751 |
| R126 | 4.0 | 4.0 | 100 | 250 | 6.000 | 2.150 | 1.423 | 18.359 |
| R131 | 5.0 | 4.2 | 150 | 250 | 6.000 | 2.150 | 1.485 | 19.158 |
| R139 | 4.2 | 4.2 | 100 | 250 | 6.000 | 2.150 | 1.567 | 20.213 |
| R166 | 4.6 | 4.2 | 100 | 250 | 6.000 | 2.150 | 1.784 | 23.013 |
| R188 | 6.0 | 4.2 | 150 | 250 | 6.000 | 2.150 | 2.005 | 25.861 |
| R196 | 5.0 | 4.2 | 100 | 250 | 6.000 | 2.150 | 2.032 | 26.212 |
| R221 | 6.5 | 4.2 | 150 | 250 | 6.000 | 2.150 | 2.357 | 30.409 |
| R238 | 5.5 | 4.2 | 100 | 250 | 6.000 | 2.150 | 2.373 | 30.612 |
| R257 | 7.0 | 5.0 | 150 | 250 | 6.000 | 2.150 | 2.750 | 35.478 |
| R283 | 6.0 | 4.2 | 100 | 250 | 6.000 | 2.150 | 2.735 | 35.278 |
| R331 | 6.5 | 4.6 | 100 | 250 | 6.000 | 2.150 | 3.212 | 41.438 |
| R335 | 8.0 | 5.0 | 150 | 250 | 6.000 | 2.150 | 3.406 | 43.932 |
| R377 | 8.5 | 5.0 | 150 | 250 | 6.000 | 2.150 | 3.758 | 48.477 |
| R385 | 7.0 | 5.0 | 100 | 250 | 6.000 | 2.150 | 3.743 | 48.289 |
| R424 | 9.0 | 6.0 | 150 | 250 | 6.000 | 2.150 | 4.413 | 56.929 |
| R442 | 7.5 | 5.5 | 100 | 250 | 6.000 | 2.150 | 4.342 | 56.008 |
| R503 | 8.0 | 6.0 | 100 | 250 | 6.000 | 2.150 | 4.979 | 64.231 |
| R524 | 10.0 | 6.0 | 150 | 250 | 6.000 | 2.150 | 5.245 | 67.655 |
| R536 | 9.0 | 6.0 | 100 | 250 | 6.000 | 2.150 | 6.054 | 78.097 |
| R709 | 9.5 | 7.0 | 100 | 250 | 6.000 | 2.150 | 6.969 | 89.866 |
| WIRE MESH - DIMENSIONS AND WEIGHTS | ||||||||
| MESH TYPES | WIRE DIAMETERS | WIRE DISTANCES | SHEET DIMENSIONS | WEIGHTS | ||||
| dL mm | dC mm | pL mm | pC mm | Length "L" mm | Width "B" mm | kg/m2 | kg/sheet | |
| Q84 | 4.0 | 4.0 | 150 | 150 | 6000 | 2150 | 1.364 | 17.598 |
| Q92 | 4.2 | 4.2 | 150 | 150 | 6000 | 2150 | 1.502 | 19.376 |
| Q98 | 5.0 | 5.0 | 200 | 200 | 6000 | 2150 | 1.573 | 20.297 |
| Q111 | 4.6 | 4.6 | 150 | 150 | 6000 | 2150 | 1.791 | 19.446 |
| Q126 | 4.0 | 4.0 | 100 | 100 | 6000 | 2150 | 2.023 | 26.098 |
| Q131 | 5.0 | 5.0 | 150 | 150 | 6000 | 2150 | 2.122 | 27.375 |
| Q139 | 4.2 | 4.2 | 100 | 100 | 6000 | 2150 | 2.227 | 28.730 |
| Q141 | 6.0 | 6.0 | 200 | 200 | 6000 | 2150 | 2.268 | 29.260 |
| Q166 | 4.6 | 4.6 | 100 | 100 | 6000 | 2150 | 2.657 | 34.279 |
| Q188 | 6.0 | 6.0 | 150 | 150 | 6000 | 2150 | 3.059 | 39.463 |
| Q196 | 5.0 | 5.0 | 100 | 100 | 6000 | 2150 | 3.147 | 40.596 |
| Q221 | 6.5 | 6.5 | 150 | 150 | 6000 | 2150 | 3.583 | 46.218 |
| Q238 | 5.5 | 5.5 | 100 | 100 | 6000 | 2150 | 3.821 | 49.295 |
| Q251 | 8.0 | 8.0 | 200 | 200 | 6000 | 2150 | 4.036 | 52.063 |
| Q257 | 7.0 | 7.0 | 150 | 150 | 6000 | 2150 | 4.162 | 53.684 |
| Q283 | 6.0 | 6.0 | 100 | 100 | 6000 | 2150 | 4.537 | 58.521 |
| Q331 | 6.5 | 6.5 | 100 | 100 | 6000 | 2150 | 5.313 | 68.538 |
| Q335 | 8.0 | 8.0 | 150 | 150 | 6000 | 2150 | 5.443 | 70.216 |
| Q377 | 8.5 | 8.5 | 150 | 150 | 6000 | 2150 | 6.132 | 79.104 |
| Q385 | 7.0 | 7.0 | 100 | 100 | 6000 | 2150 | 6.171 | 79.610 |
| Q393 | 10.0 | 10.0 | 200 | 200 | 6000 | 2150 | 6.304 | 81.323 |
| Q424 | 9.0 | 9.0 | 150 | 150 | 6000 | 2150 | 6.876 | 88.702 |
| REF NO. | Pitch of wires(mm) | diameter of wire(mm) | Cross section area(sqm) | Dimension of Mesh | Area of Mesh(sqmm) | Mass (kg/sqm) | Weight of Mesh(kg) | ||||
| pL | pC | dL | dC | long | cross | L(mm) | B(mm) | ||||
| Q131 | 150 | 150 | 5 | 5 | 131 | 131 | 2150 | 5000 | 10.75 | 2.091 | 22.476 |
| Q188 | 150 | 150 | 6 | 6 | 188 | 188 | 2150 | 5000 | 10.75 | 3.014 | 32.401 |
| Q221 | 150 | 150 | 6.5/5 | 6.5 | 221 | 221 | 2150 | 5000 | 10.75 | 3.136 | 33.707 |
| Q295 | 150 | 150 | 7.5/5.5 | 7.5 | 295 | 295 | 2150 | 5000 | 10.75 | 4.116 | 44.245 |
| Q378 | 150 | 150 | 8.5/6 | 8.5 | 378 | 378 | 2150 | 6000 | 12.9 | 5.167 | 66.659 |
| Q443 | 150 | 100 | 6.5d/6.5 | 7.5 | 443 | 442 | 2150 | 6000 | 12.9 | 6.073 | 78.337 |
| Q513 | 150 | 100 | 7d/7 | 8 | 513 | 503 | 2150 | 6000 | 12.9 | 6.974 | 89.97 |
| Q670 | 150 | 100 | 8d/8 | 9 | 670 | 636 | 2150 | 6000 | 12.9 | 8.949 | 115.438 |
| R378 | 150 | 250 | 8.5/6 | 5 | 378 | 78 | 2150 | 6000 | 12.9 | 3.306 | 42.644 |
| R443 | 150 | 250 | 6.5d/6.5 | 5.5 | 443 | 95 | 2150 | 6000 | 12.9 | 3.892 | 50.209 |
| R513 | 150 | 250 | 7d/7 | 6 | 513 | 113 | 2150 | 6000 | 12.9 | 4.54 | 58.576 |
More details of SD reinforcing mesh as below:
 |  |

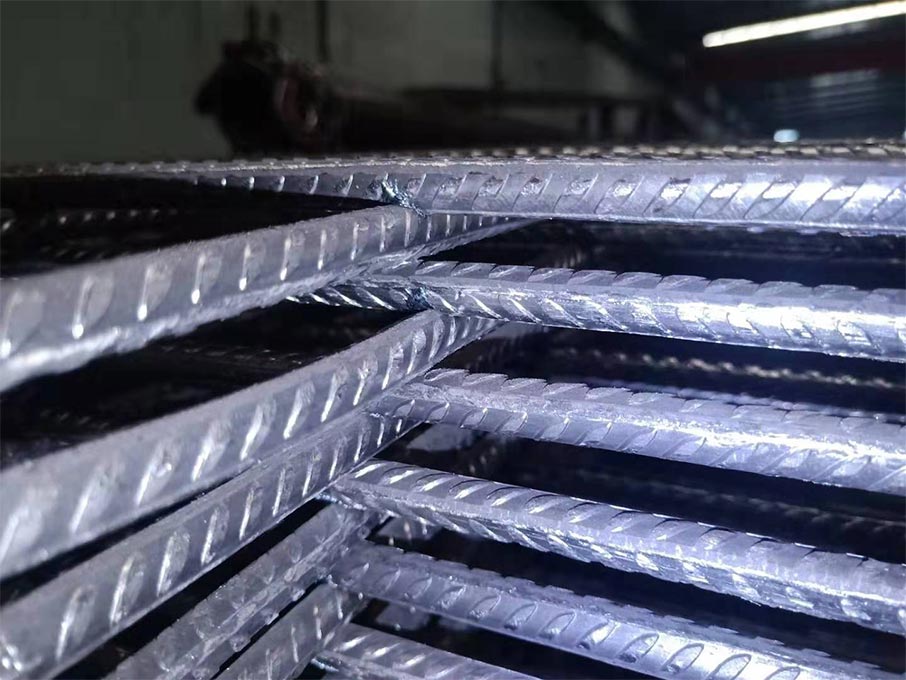

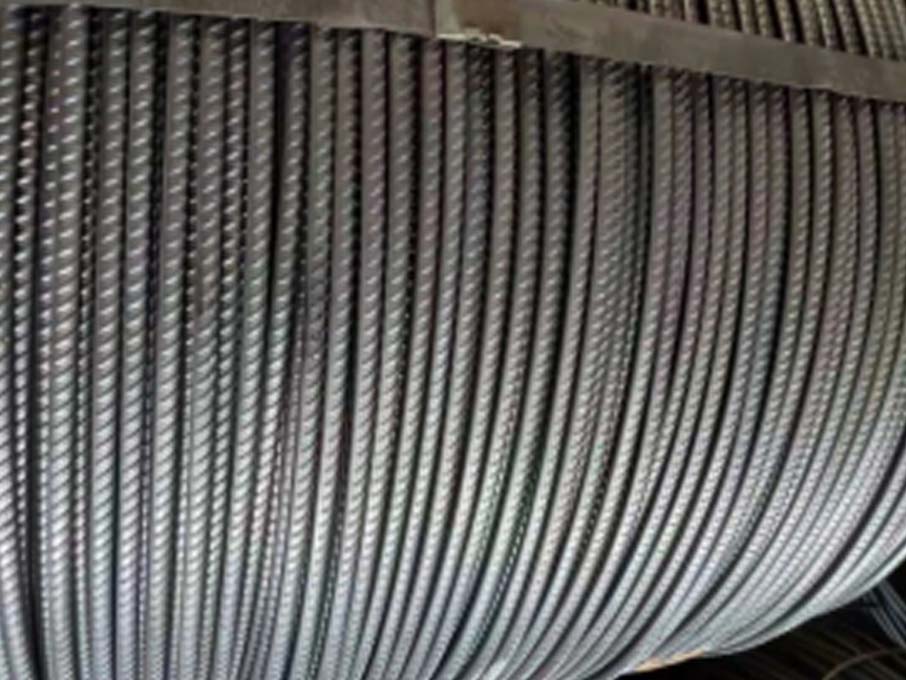

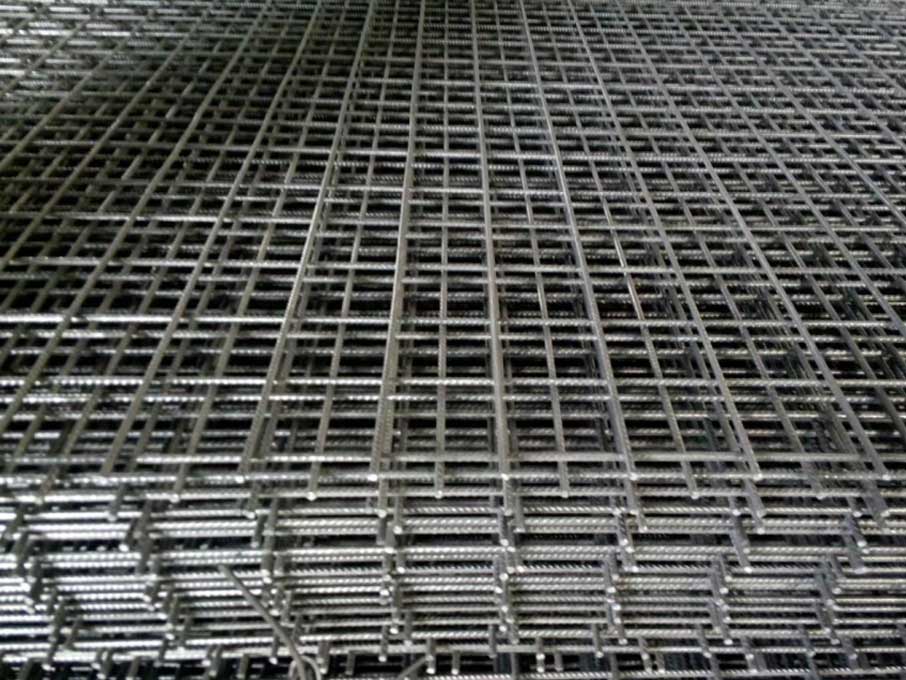

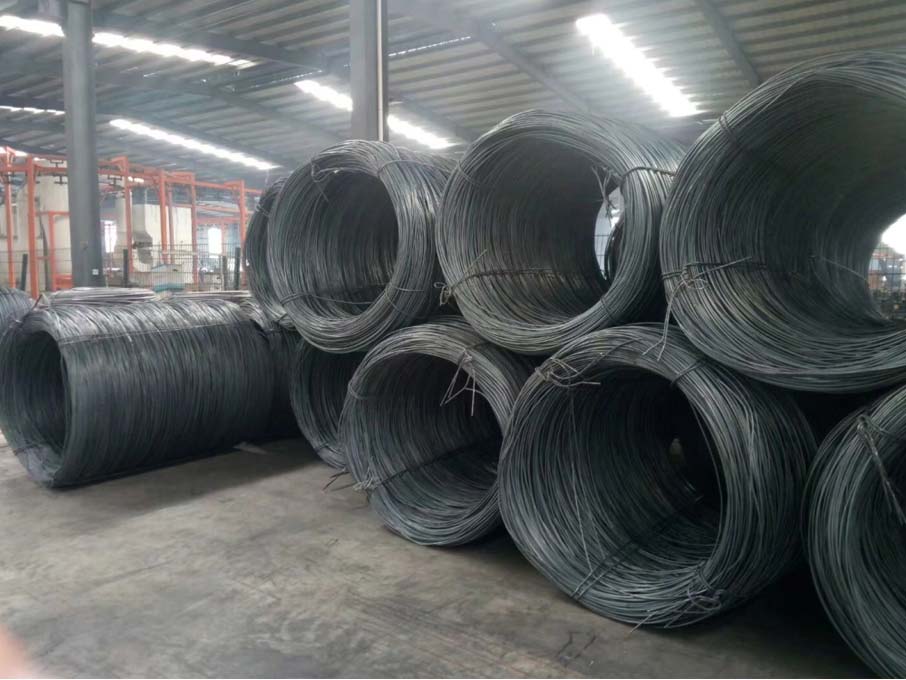

| B500A and B500B or B500C high quality raw material | After Drawn, the surface of wire has clearly and visible notch and three faces indentation |
 |  |
| The solder joint is firmly | The surface of mesh is flat and the appearance is beautiful. |
The packing and shipment
 |  |

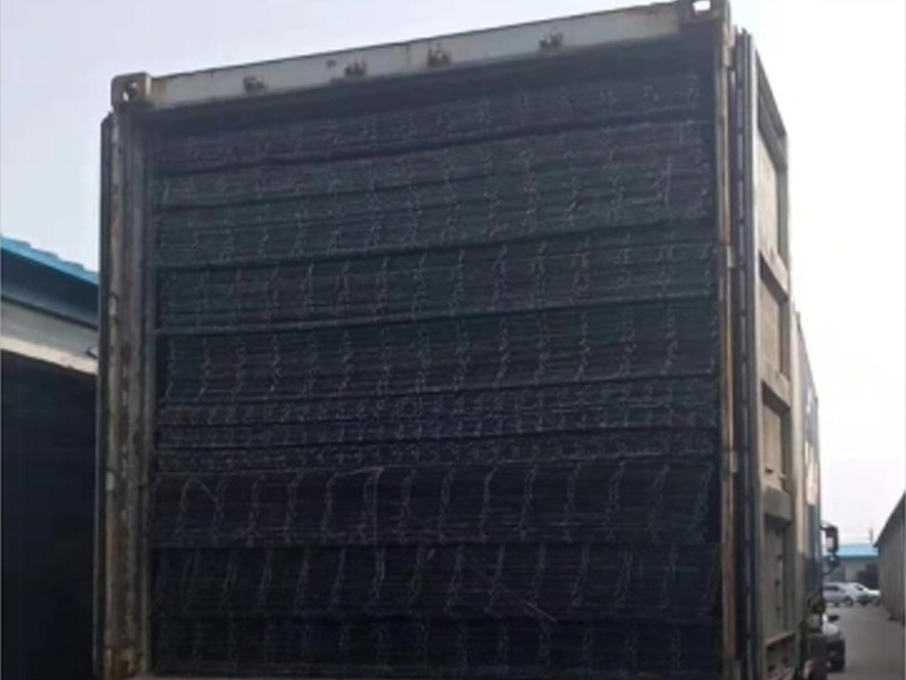

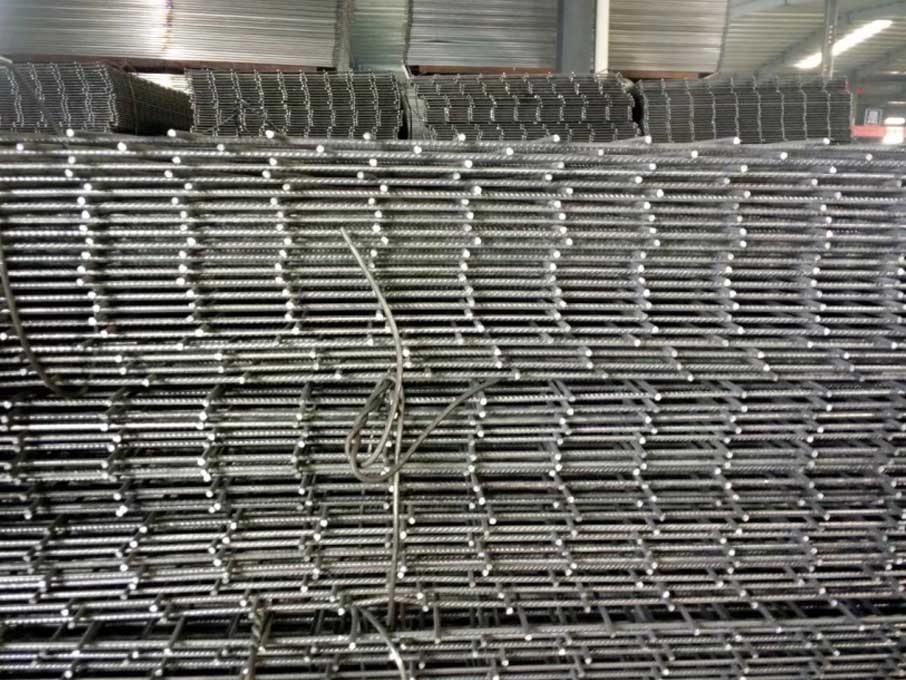

| The length of SD reinforcing mesh is less than 6m, the width of SD reinforcing mesh is less than 2.2m, the packing is bundle | The length of SD reinforcing mesh is 6m, the width of SD reinforcing mesh is 2.4m, the packing is steel pallets |
 |  |

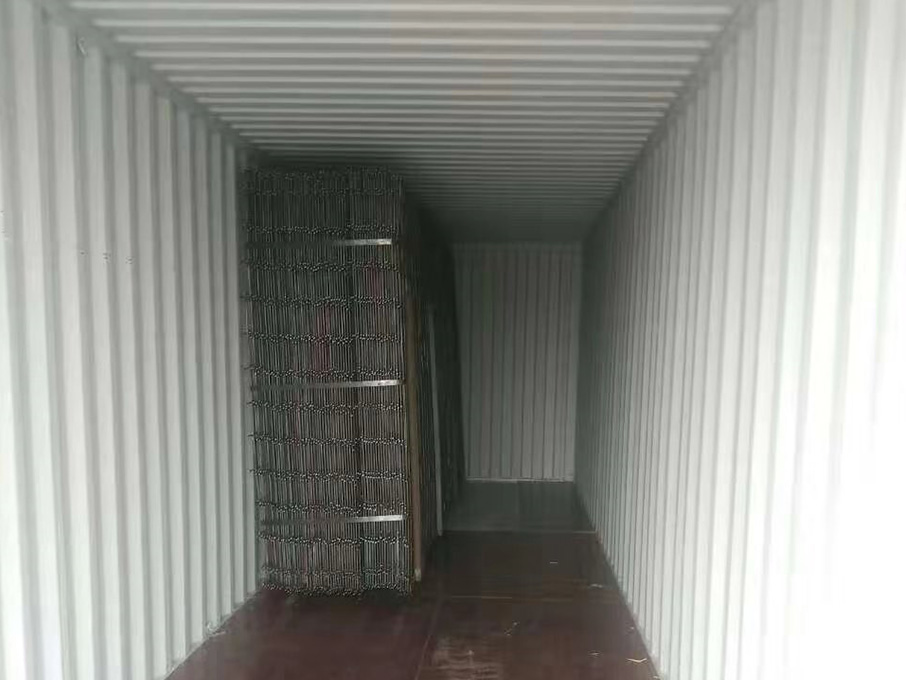

| For bundle packing, a 40HQ container can be load 26tons of SD reinforcing mesh | For steel pallets packing, a 40HQ container can be load 24tons of SD reinforcing mesh |
The corner of Heyou wire mesh warehouse and workshop
 |  |

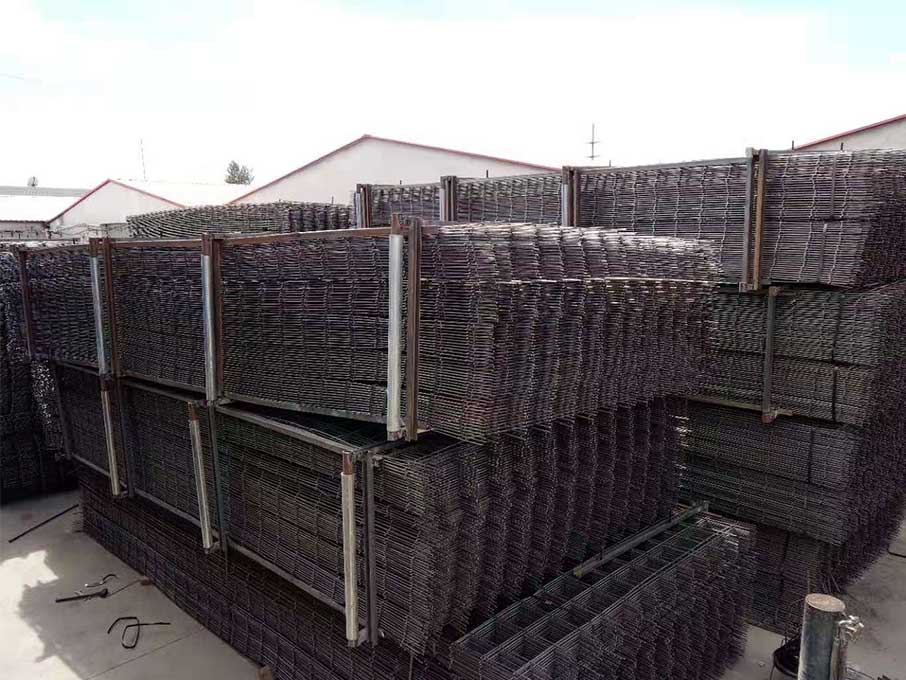

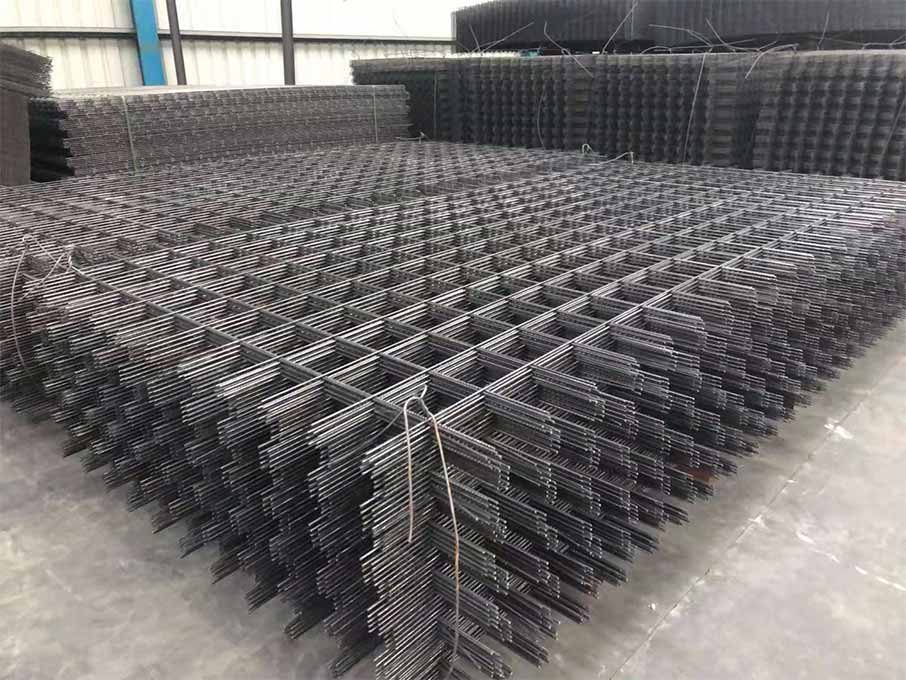

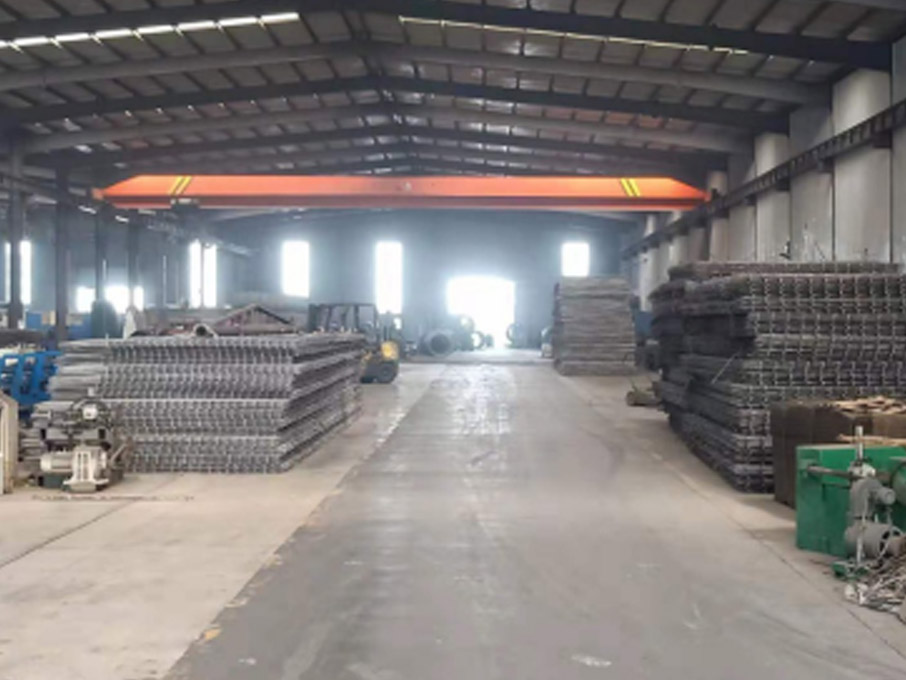

| The corne of Warehouse for SD reinforcing mesh | The corner of Workshop for SD reinforcing mesh |
The Application of SD reinforcing mesh as below:
 |  |

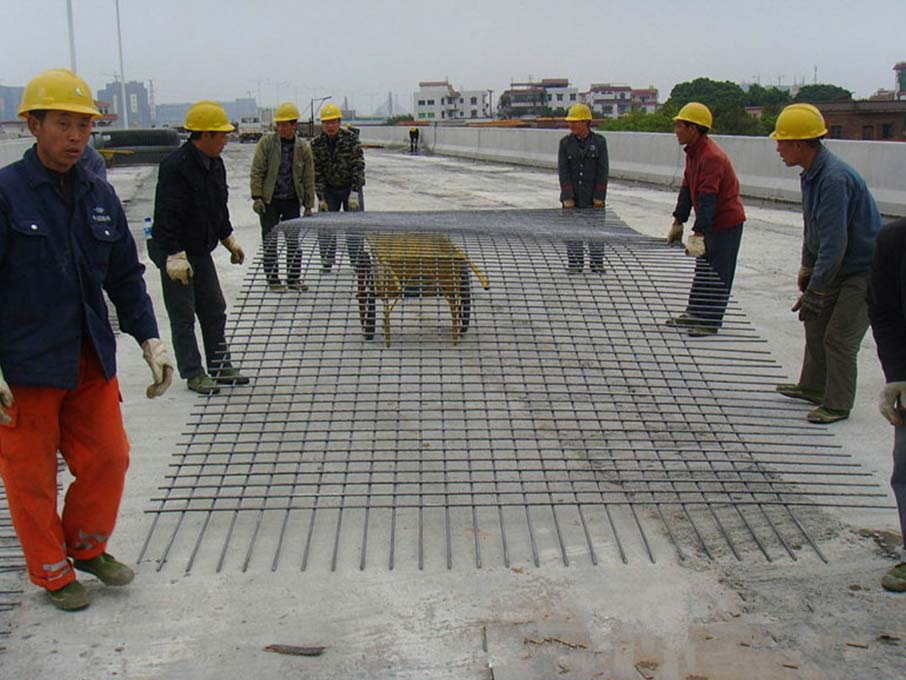

| SD reinforcing mesh used on subgrade of highway and road | used on building construction as ground floor slab, sapcing in wall, roof slabs, foundation etc |
 |  |

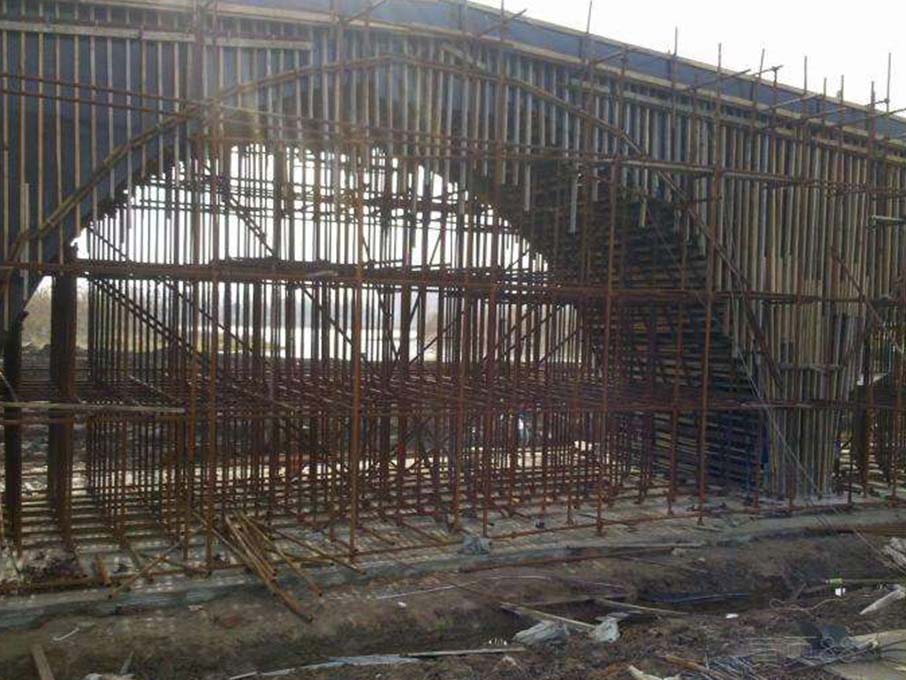

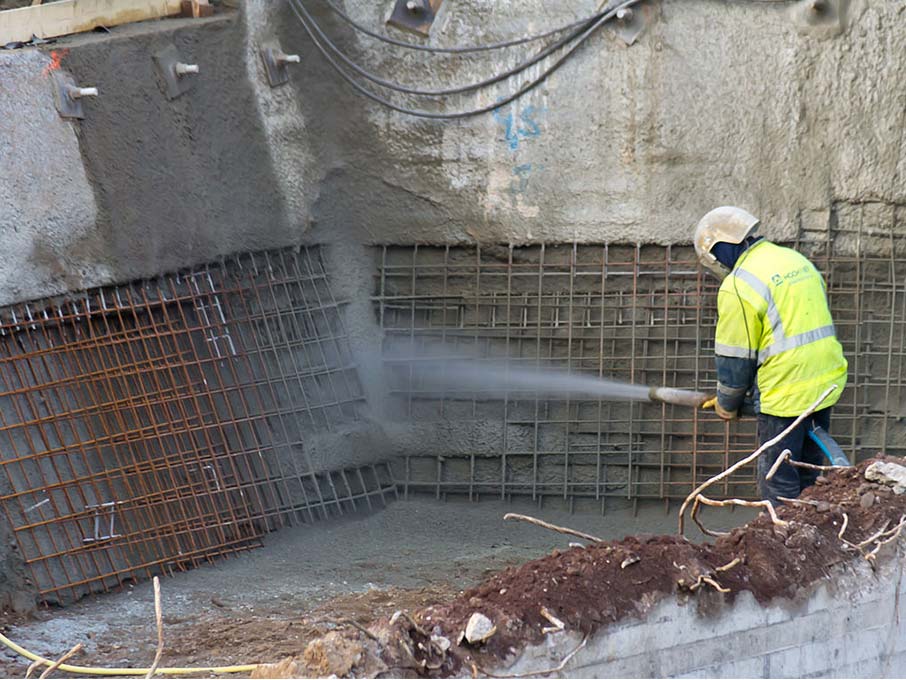

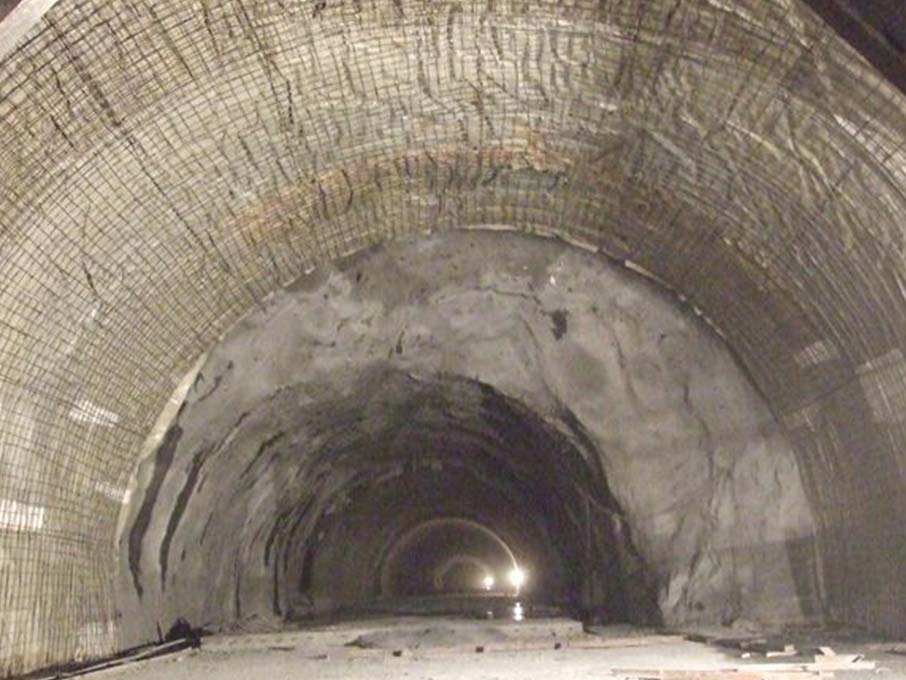

| SD reinforcing mesh used on bridge support and pier | used on tunnel |
 |  |

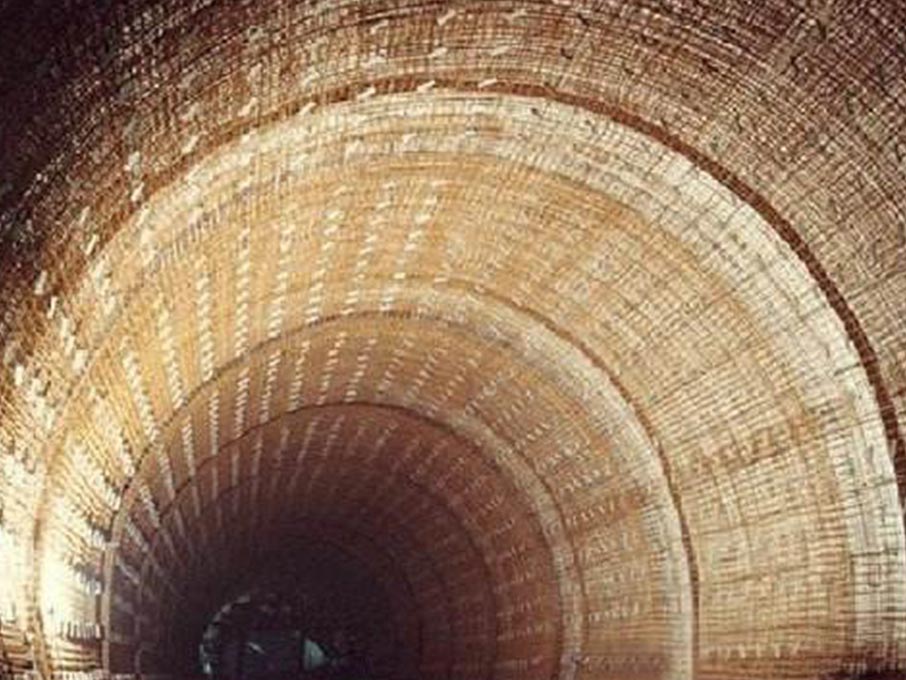

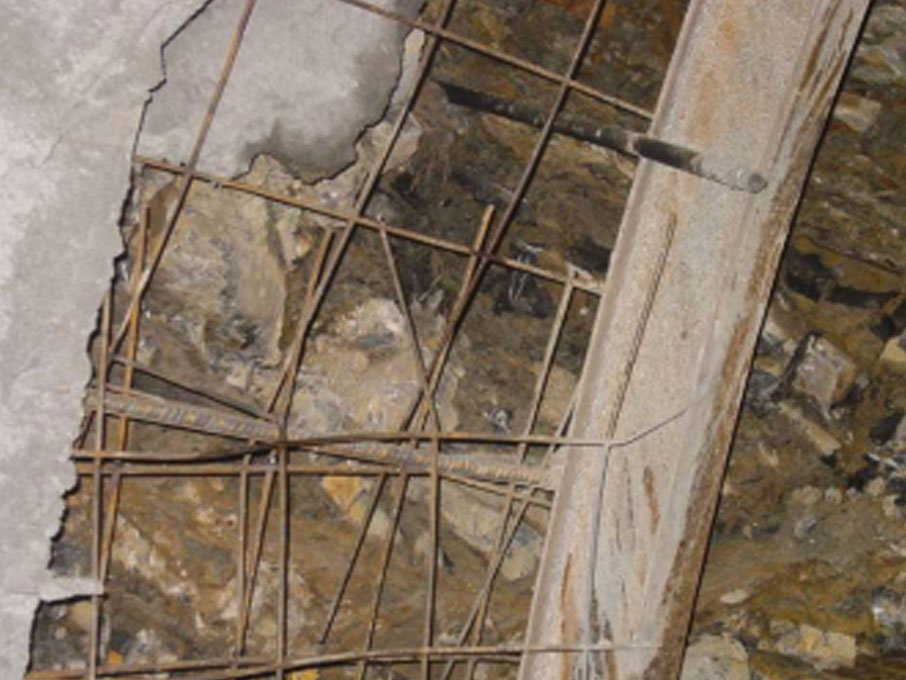

| SD reinforcing mesh used on construction of sewer | SD reinforcing mesh used on coal and mine reinforcement and support |
