Standard Mesh
Standard Mesh A98 / A142 / A193 / A252 / A393 reinforcing mesh/reinforced mesh / reinforcement mesh

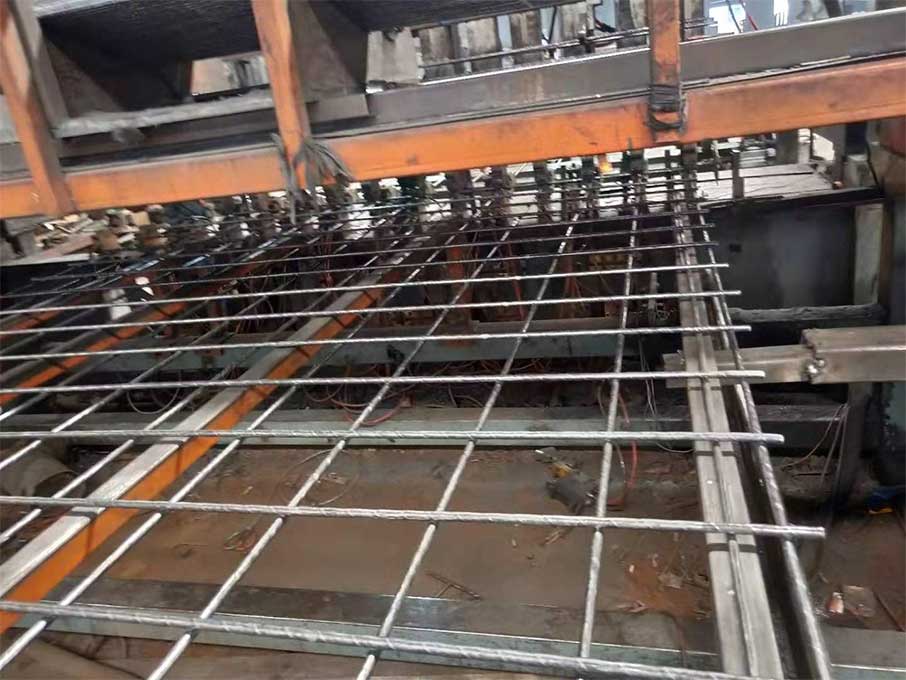

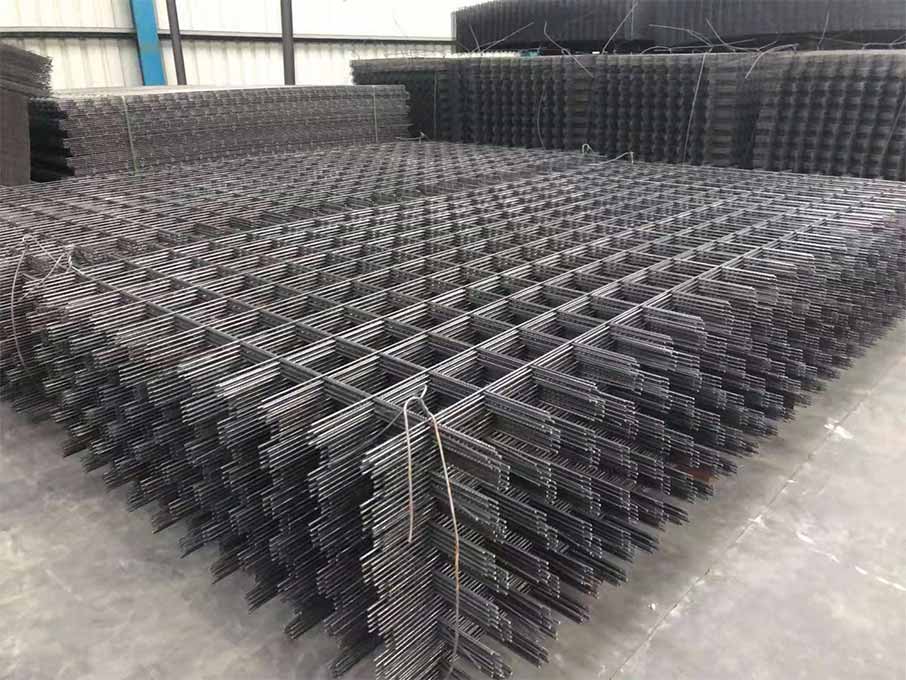

PRODUCT DESCRIPTION
Standard Mesh A98 / A142 / A193 / A252 / A393 reinforcing mesh/reinforced mesh / reinforcement mesh
Standard mesh is belong to reinforcing mesh, the spacing of standard mesh is 200mm,overhang length is 100mm of four sides, and the popular size is A393, A252, A193, A142, B1131, B785, B503, B385, B283, and D49. We have plenty of these A type, B type and D type stocks perennially. The stocks of traditional standard mesh is manufactured in panel size 2.4m x 4.8m. and the material is B500A, which is conformed with stanard BS4483: 2005 and BS8666: 2000.
The full of standard mesh material's tensile properties as below:
| Performance characteristic | Minimum value | Maximum value | ||||
| B500A | B500B | B500C | B500A | B500B | B500C | |
| Re,MPa | 485 | 485 | 485 | 650 | 650 | 650 |
| Rm/Re | 1.03a | 1.06 | 1.13 | N/A | N/A | 1.38 |
| Agt,% | 2.0b | 4.0 | 6.0 | N/A | N/A | N/A |
| a 1.01 for wire diameter below 8mmb 0.8% for wire diameter below 8mm | ||||||
About the chemical component and other mechnical properties is conformance with standard BS4449: 2005.
The skatch of Standard mesh as below:
 | |
NL= Number of longitudinal bars PL= pitch of longitudinal bars dL= diameter of longitudinal bars NC=Number of transverse bars PC=Pitch of transverse bars dC=Diameter of transverse bars | L= length of longitudinal bar B=Length of transverse bar u1=Overhang of longitudinal bars u2=Overhang of longitudinal bars u3=Overhang of transverse bars u4= overhang of transverse bars |
The specification of standard mesh as below:
| MESH TYPE | STEEL GRADE | Ø (mm) | DIMENSIONS (mm) | CENTERS (mm) | SHEET | BUNDLE | NL | NC | OVERHANGS (mm) | ||||||||
| dL | dC | L | B | Pl | Pc | kg / m2 | kg / Sheet | Sheets / Bundle | Kg/Bundle | u1 | u2 | u3 | u4 | ||||
| A98 | B500A | 5 | 5 | 4800 | 2400 | 200 | 200 | 1.54 | 17.76 | 60 | 1065.6 | 12 | 24 | 100 | 100 | 100 | 100 |
| A142 | B500A /B500B | 6 | 6 | 4800 | 2400 | 200 | 200 | 2,22 | 25.59 | 50 | 1280 | 12 | 24 | 100 | 100 | 100 | 100 |
| A193 | B 500A | 7 | 7 | 4800 | 2400 | 200 | 200 | 3,02 | 34.83 | 40 | 1393 | 12 | 24 | 100 | 100 | 100 | 100 |
| A252 | B500A / B500 B | 8 | 8 | 4800 | 2400 | 200 | 200 | 3,95 | 45.50 | 30 | 1365 | 12 | 24 | 100 | 100 | 100 | 100 |
| A393 | B500B | 10 | 10 | 4800 | 2400 | 200 | 200 | 6,16 | 71.08 | 20 | 1422 | 12 | 24 | 100 | 100 | 100 | 100 |
| Structural Mesh | |||||||||||||||||
| B196 | B500A | 5 | 7 | 4800 | 2400 | 100 | 200 | 3.05 | 35.18 | 30 | 1055.4 | 24 | 24 | 100 | 100 | 50 | 50 |
| B283 | B500A | 6 | 7 | 4800 | 2400 | 100 | 200 | 3.73 | 43 | 25 | 1075 | 24 | 24 | 100 | 100 | 50 | 50 |
| B385 | B500A | 7 | 7 | 4800 | 2400 | 100 | 200 | 4,53 | 52.25 | 30 | 1568 | 24 | 24 | 100 | 100 | 50 | 50 |
| B503 | B500B | 8 | 8 | 4800 | 2400 | 100 | 200 | 5,93 | 68.24 | 20 | 1365 | 24 | 24 | 100 | 100 | 50 | 50 |
| B785 | B 500 B | 10 | 8 | 4800 | 2400 | 100 | 200 | 8,14 | 93.83 | 14 | 1314 | 24 | 24 | 100 | 100 | 50 | 50 |
| B1131 | B 500 B | 12 | 8 | 4800 | 2400 | 100 | 200 | 10,90 | 125.1 | 10 | 1251 | 24 | 24 | 100 | 100 | 50 | 50 |
| Long Mesh | |||||||||||||||||
| C785 | B500B | 10 | 6 | 4800 | 2400 | 100 | 400 | 6.72 | 77.48 | 13 | 1007.2 | 24 | 12 | 200 | 200 | 50 | 50 |
| C636 | B500B | 9 | 6 | 4800 | 2400 | 100 | 400 | 5.55 | 63.97 | 16 | 1023.5 | 24 | 12 | 200 | 200 | 50 | 50 |
| C503 | B500A | 8 | 5 | 4800 | 2400 | 100 | 400 | 4.34 | 49.93 | 21 | 1048.5 | 24 | 12 | 200 | 200 | 50 | 50 |
| C385 | B500A | 7 | 5 | 4800 | 2400 | 100 | 400 | 3.41 | 39.26 | 26 | 1020.7 | 24 | 12 | 200 | 200 | 50 | 50 |
| C283 | B500A | 6 | 5 | 4800 | 2400 | 100 | 400 | 2.61 | 30.06 | 34 | 1022.0 | 24 | 12 | 200 | 200 | 50 | 50 |
| Wrapping Mesh | |||||||||||||||||
| D98 | B500A | 5 | 5 | 4800 | 2400 | 200 | 200 | 1.54 | 17.74 | 57 | 1011.2 | 12 | 24 | 100 | 100 | 100 | 100 |
| D49 | B500A | 2.5 | 2.5 | 4800 | 2400 | 100 | 100 | 0.77 | 8.87 | 113 | 1002.3 | 24 | 48 | 50 | 50 | 50 | 50 |
