Merchant sheets mesh A142 / A193 / A252 / A393 Reinforcing mesh/reinforced steel mesh/reinforcement mesh
Merchant sheets mesh as special reinforcement mesh, which produced by heyou wire mesh factory. It has widely application for coal and mine tunnel protection and reinforcement, concrete roadway pavement, bridge pavement, aireport runway, tunnel lining, building floor, roof, wall, terrace, building foundation construction, concrete pipe, pile and other aspects of protection.
Material: B500A, B500B, B500C
Standard: BS4483: 2005; BS8666: 2000
Model: A142, A193, A252, A393
Mesh space: 200mm
Wire diameter: 6mm, 7mm, 8mm, 10mm
Sheet size: 2m x 3.6m

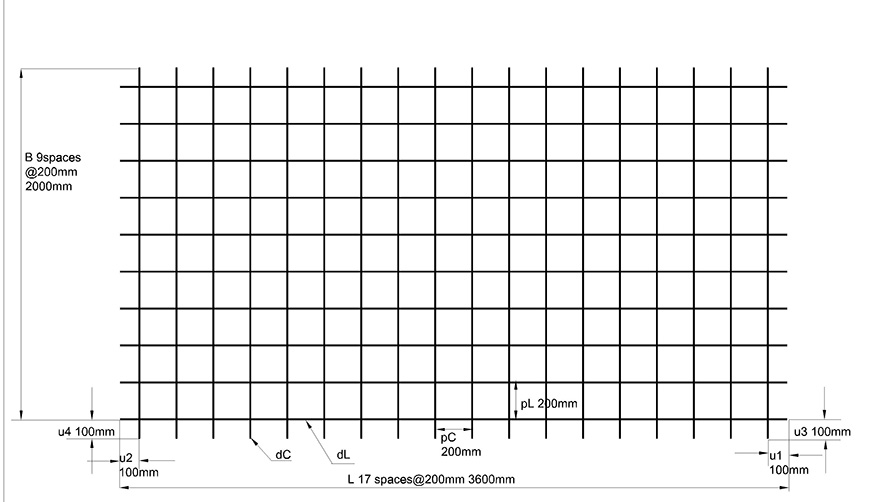

The drawing of merchant sheets mesh as below:
NL= Number of longitudinal bars
PL= pitch of longitudinal bars
dL= diameter of longitudinal bars
NC=Number of transverse bars
PC=Pitch of transverse bars
dC=Diameter of transverse bars
L= length of longitudinal bar
B=Length of transverse bar
u1=Overhang of longitudinal bars
u2=Overhang of longitudinal bars
u3=Overhang of transverse bars
u4= overhang of transverse bars
The specification of merchant sheets mesh as below:
|MESH TYPE||STEEL GRADE||Ø ( mm )||DIMENSIONS (mm)||CENTERS ( mm )||SHEET||BUNDLE||NL||NC||OVERHANGS ( mm )|
|dL||dC||L||B||Pl||Pc||kg / m2||kg / Sheet||Sheets / Bundle||kg / Bundle||u1||u2||u3||u4|
|A142M||B500A / B500B||6||6||3600||2000||200||200||2.22||16.000||50||800||10||18||100||100||100||100|
|A193M||B500A / B500B||7||7||3600||2000||200||200||3.02||21.770||30||653||10||18||100||100||100||100|
Details of merchant sheets mesh

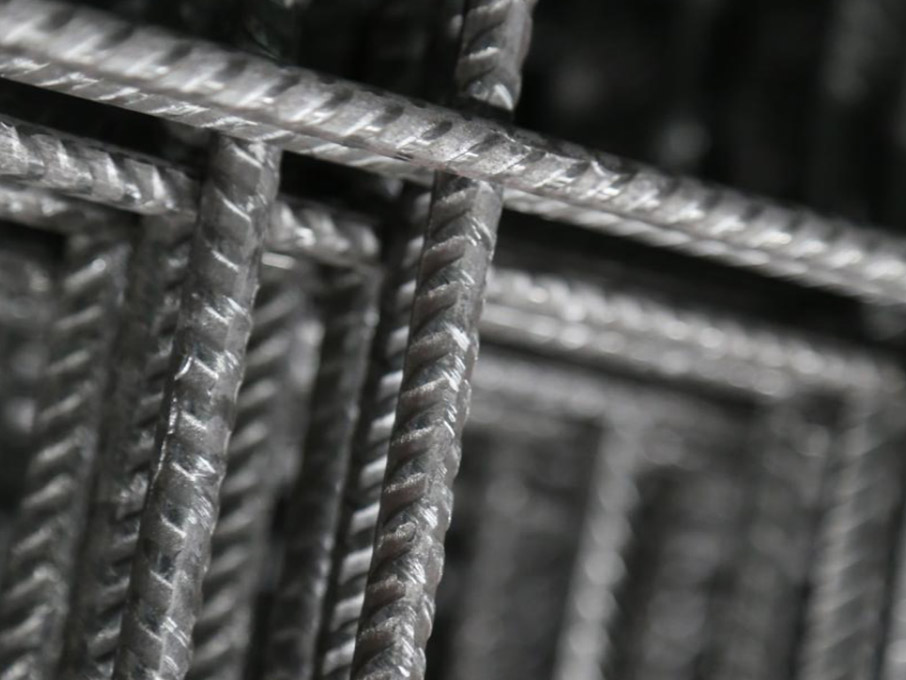

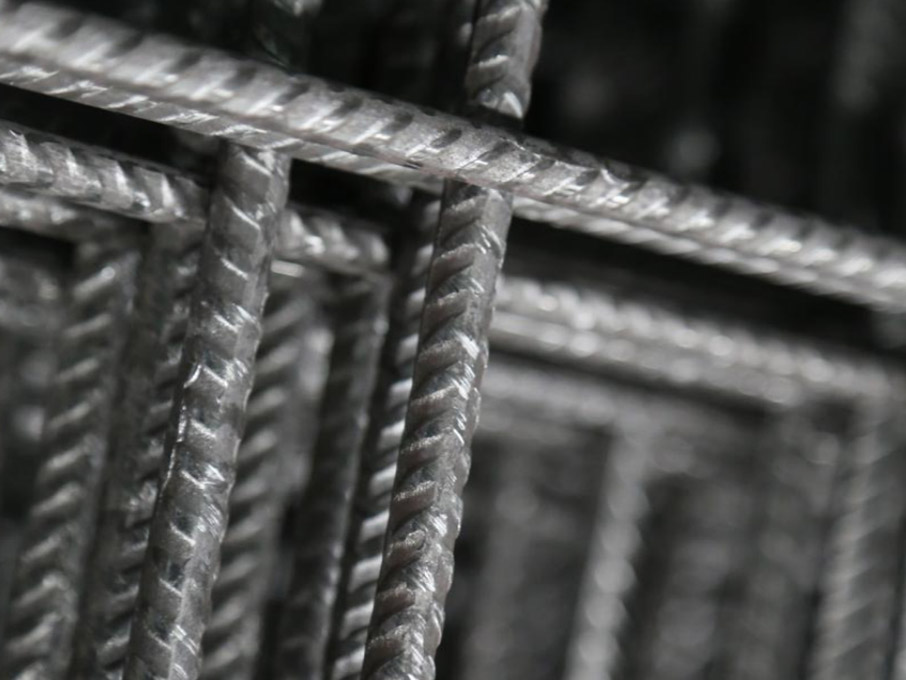

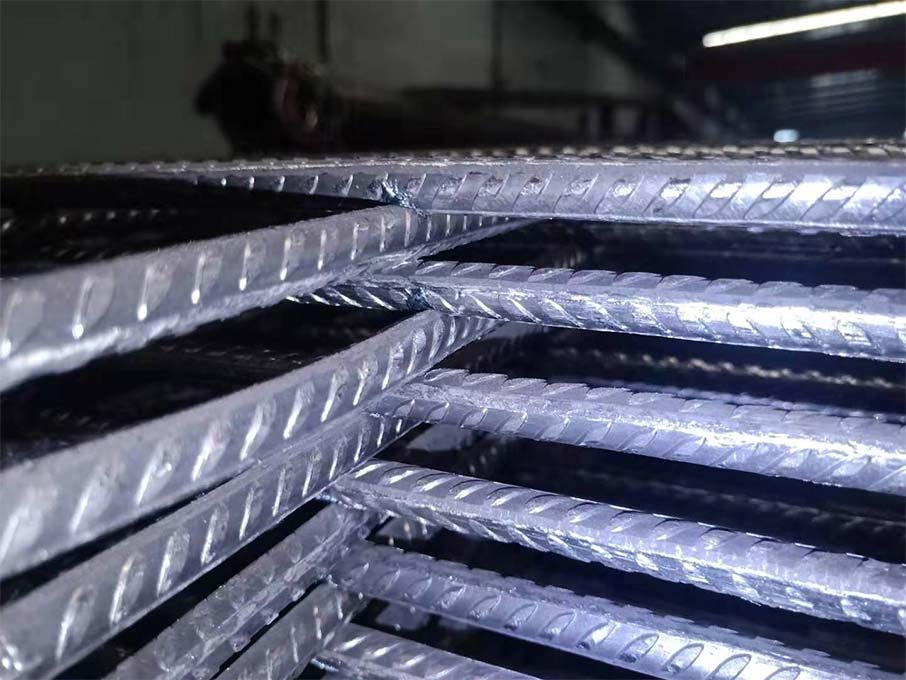

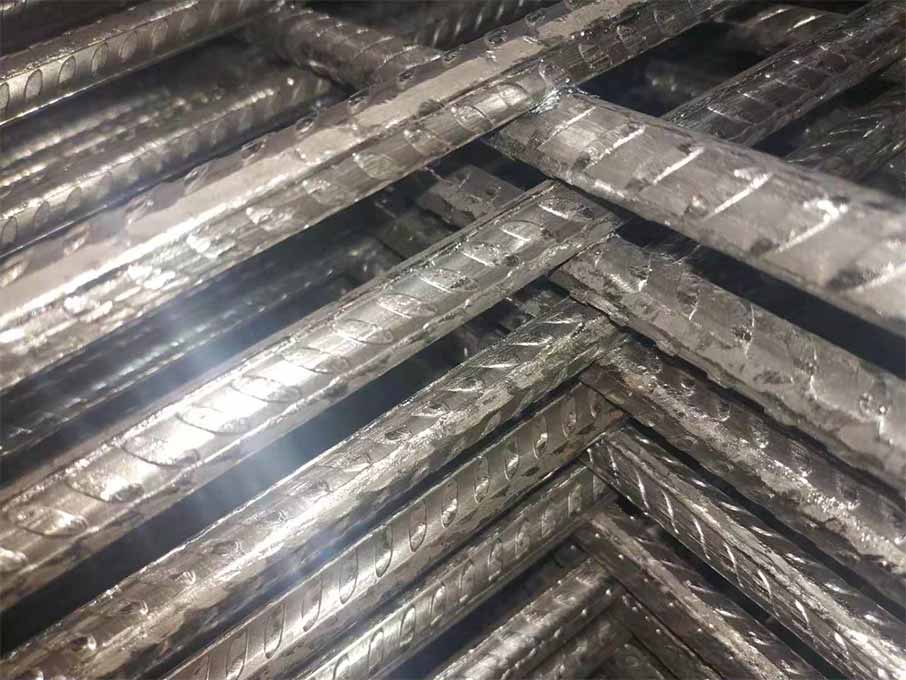

|Clearly intentation on the wire||Firmly solder joint|

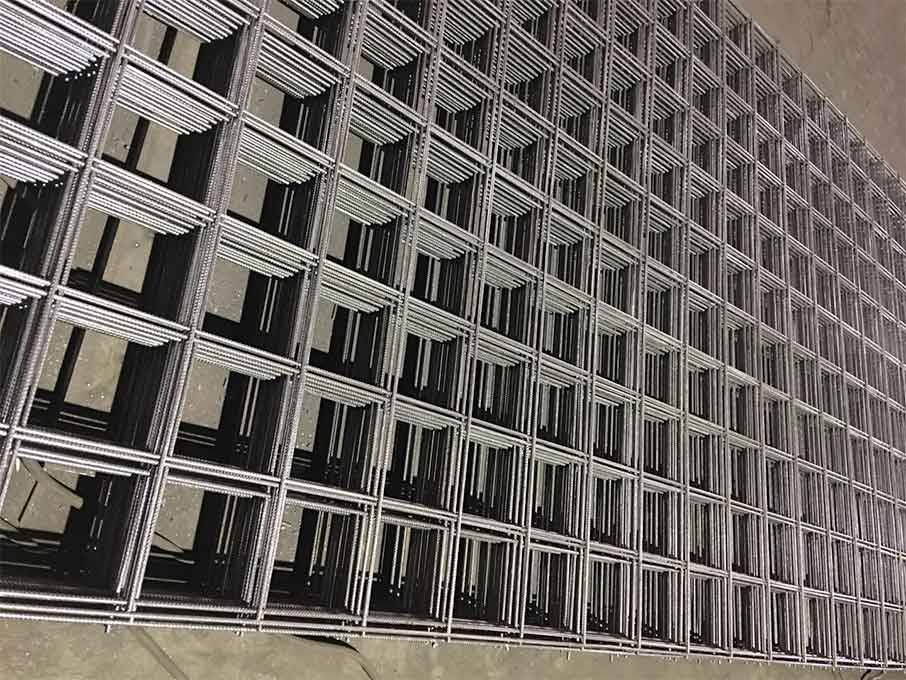

|Plain sheet surface||Uniform Mesh|
Advantage of merchant sheets mesh:
1. used widely on civil engineering and construction fields
2. compared to tie by laborer, machine welding merchant sheets mesh can save 50%-70% working-hours, accelerate construction progress,shorten construction period.
3. Cut down 5%-10% construction cost.
4. It can be reduced 75% more crack appearing.
How many days can you delivery the products?
We have enough stocks for merchant sheets mesh. we can delivery the merchant sheets mesh within 5days after received your prepayment.
