Heyou factory can produce concrete reinforcing mesh which is the specification of New Zealand standard AS-NZS 4761-2001.
Details of concrete reinforcing mesh:
Material: 250N, 500N, 500L, 300E, 500E

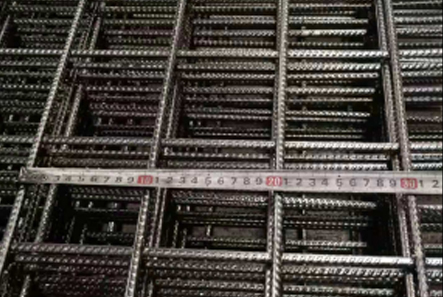

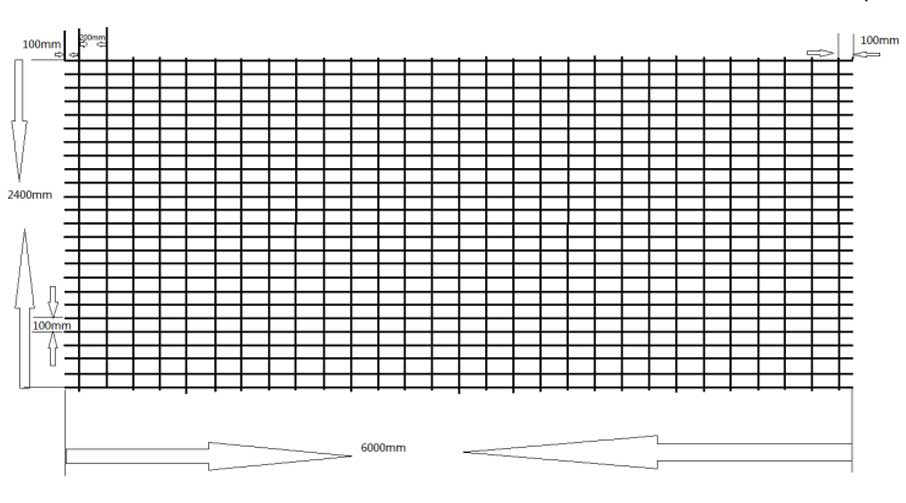

Mesh Pitch: 200mm
Wire: ribbed steel wire & plain steel wire
Overhang length of two sides: 100mm
Wire diameter:6mm, 7mm, 8mm, 9mm
Size: 2.4m * 6m or 2.2m * 5.8m
Packing: 1ton more or less per bundle
HS code: 73142000
Production Standard: AS-NZS 4671-2001
More feature of concrete reinforcing mesh as below:

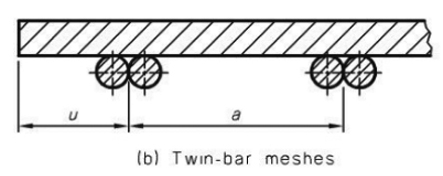

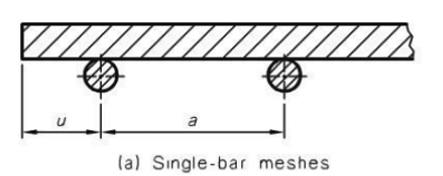

|Signel-bar meshes||Twin-bar meshes|

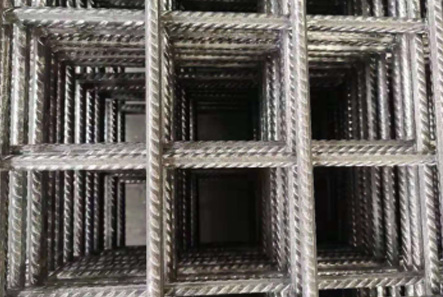

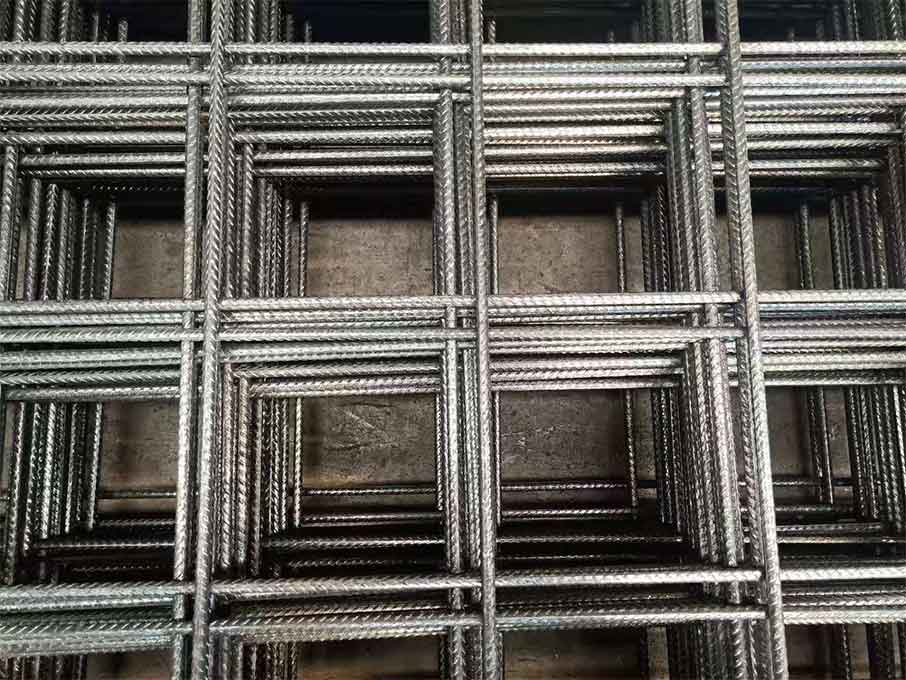

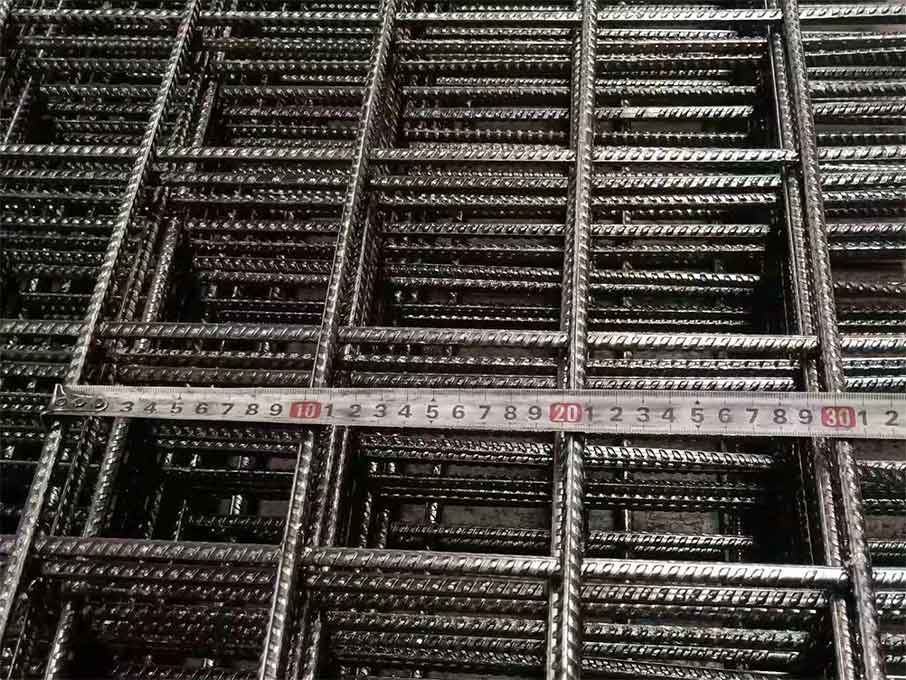

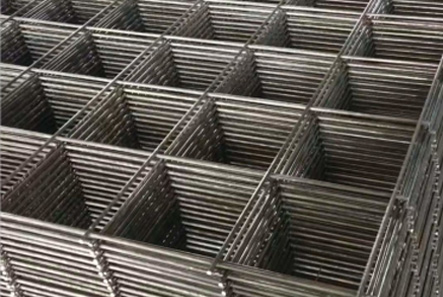

|Plain concrete reinforcing mesh||Ribbed concrete reinforcing meshThe ribbed is visible and deep notch.|

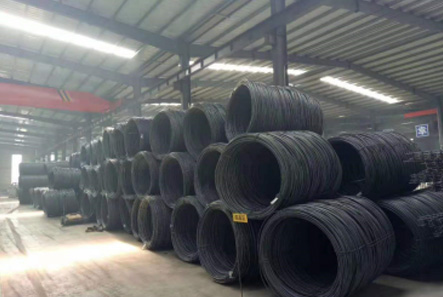

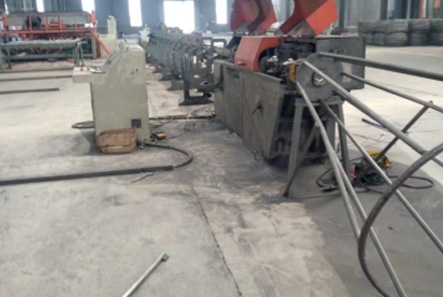

|high quality steel bar as raw materials||Resposibility worker for drawing,straightened and cut|

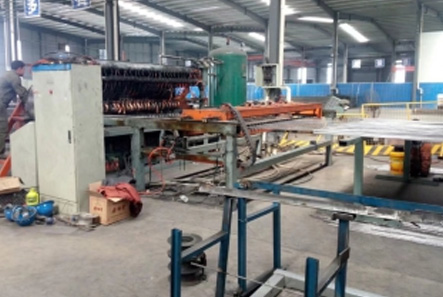

|Electric resistance welding, the solder joint firmly and beautiful appearance||Full auotamatic machine opreation, the panel size high accuracy,|

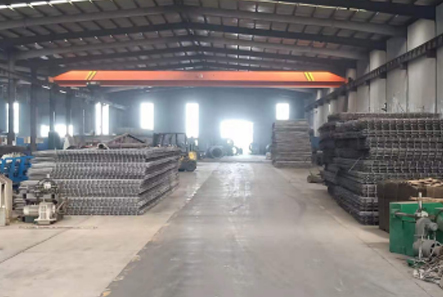

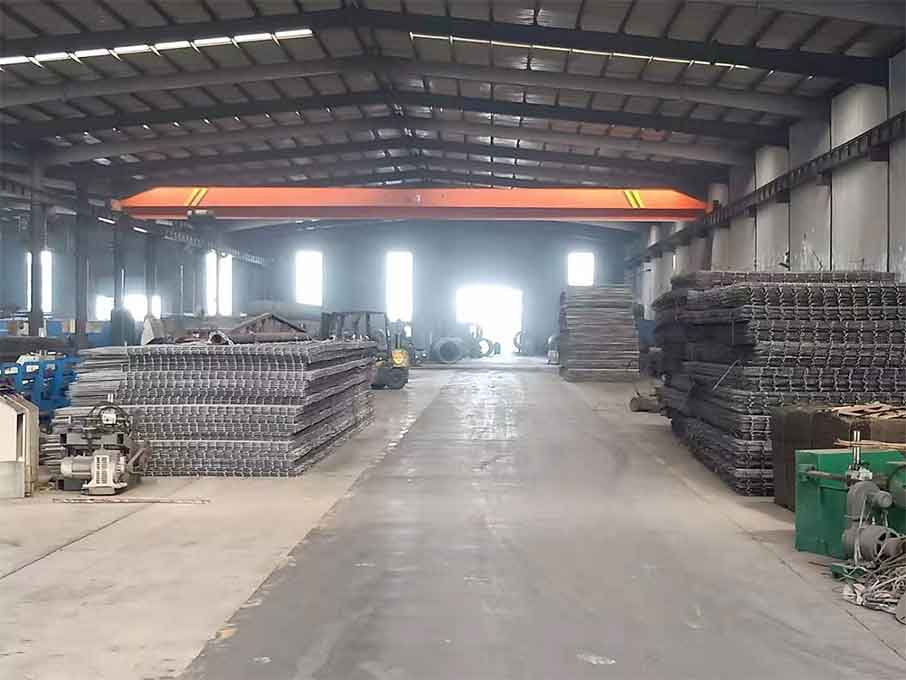

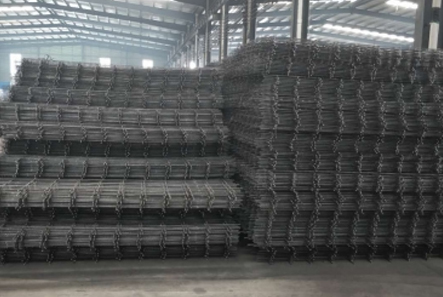

|Neatly packing||Big place and enough warehouse for stocks|
The specification of concrete reinforcing mesh as below
|concrete reinforcing mesh specification|
|Mesh Type and reference number||Longitudinal bars||Cross-bars||Mass for 6x2.4m sheets||Cross-sectional area/m width|
|No. x dia., mm||Pitch, @mm||No. x dia., mm||Pitch, @mm||Unit area, kg/sqm||Sheet, kg||Long' l bars, sqmm/m||Cross bars, sqmm/m|

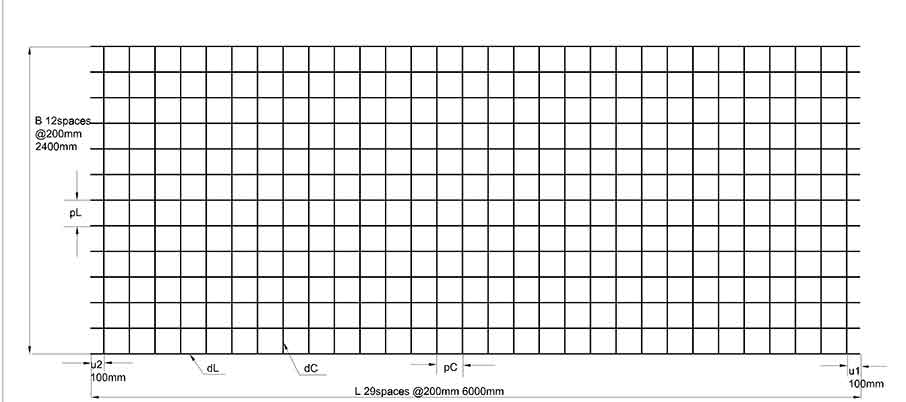

|Structural and skatch|
|SE92||13 X9.0||200||30 X9.0||200||5.0||75||318||318|
|SE82||13 X8.0||200||30 X8.0||200||3.9||59||251||251|
|SE72||13 X7.0||200||30 X7.0||200||3.0||45||192||192|
|SE62||13 X6.0||200||30 X6.0||200||2.2||33||141||141|
|SL51.5||17 X5.3||150||40 X5.3||150||2.2||32||147||147|
|SL41.5||17 X4.0||150||40 X4.0||150||1.3||19||84||84|
Are you a Manufacturer?
Heyou wire mesh factory as a professional factory for reinforcement mesh, which has 10 workshops, more than 200 workers, advanced production line,perfect production process, Strict production regulations.
We own ourselves laboratory for inspected chemical composition and mechnical property of raw material, drawn wire diameter measuring,cutting wire length measurement, and full pieces of concrete reinforcing mesh which contained pitch of wire to wire, shearing resistance, tensile strength, yeild strength, elongation, bend test, weight tolerance, size tolerance, ribbed height, pitch of transverse wire ribbed, surface quality and etc. We're strictly to do everything in order to guarantee our concrete reinforcing mesh quality.
Therefore, Heyou Wire Mesh has a high reputation in our field as real manufacturer.
