Reinforcement steel mesh was welded by automatic electrical resistance welding machines conformance to standard AS-NZS 4761-2001.
The material of reinforcement steel mesh is 250N, 500N, 500L, 300E, 500E.
Reinforcement steel mesh is very poupular in civil engineering and construction. It always used on road subgrade, building foundation, tunnel support and reinforced,mine and coal reinforced and support, bridge construction etc.
During construction works, It is not only increase our working speed and time but also save 75% construction cost and enhance the crack resistance.
The specification of rectangular reinforcement steel mesh as below:
|Rectangular Reinforcing Mesh 2.4m*6m=14.4sqm|
|Code||Cross wire||Longwire mm||Mass/sheetkg||Quantityin pack|
|Pitch@mm||No. x dia., mm||Pitch@mm||No. x dia., mm|
|RL718||7.60 @ 200||30 x7.6||6.75 @ 100||25 x 7.6||68||20|
|RL818||7.60 @ 200||30 x7.6||7.60 @ 100||25 x7.6||79||20|
|RL918||7.60 @ 200||30 x7.6||8.55 @ 100||25 x 8.55||93||20|
|RL1018||7.60 @ 200||30 x7.6||9.50 @ 100||25 x9.5||109||15|
|RL1118||7.60 @ 200||30 x7.6||10.65 @ 100||25 x10.65||131||15|
|RL1218||7.60 @ 200||30 x7.6||11.90 @ 100||25 x11.9||157||10|
The panel size 2.4m*6m is very pouplar in Australian market,but considered the transportation in container by sea and saved cost, we advise the customers to change the panel size to be 2.2m x5.8m.

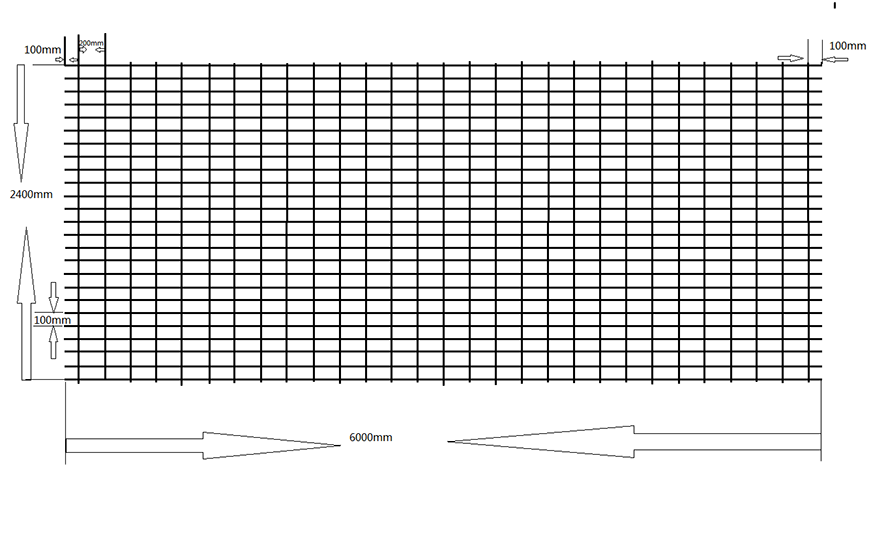

The skatch of rectangular reinforcement steel mesh for RL718/RL818/RL918/RL1018/RL1118/RL1218 as below:
The production process of reinforcement steel mesh

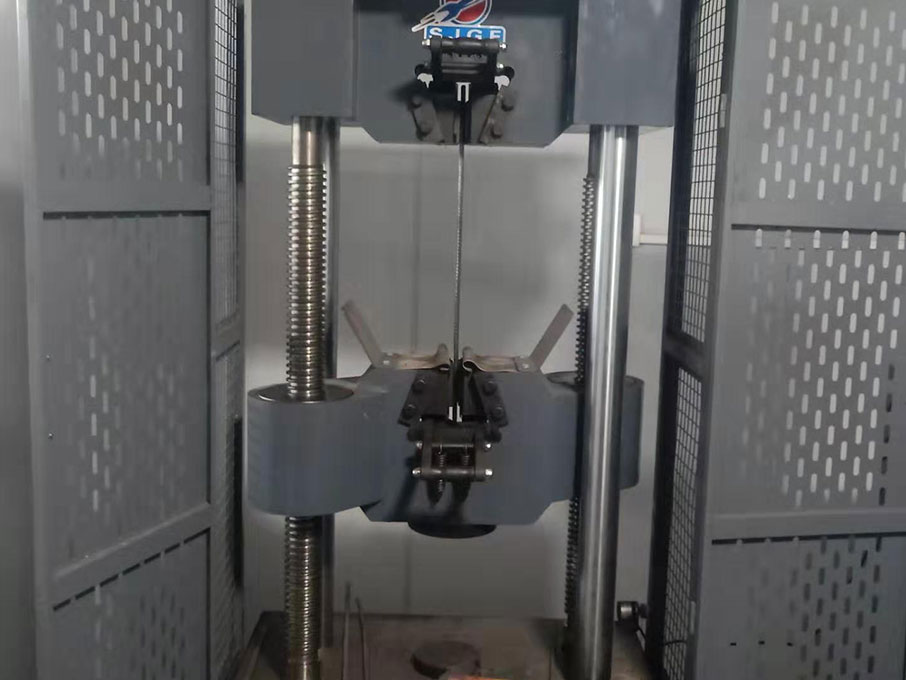

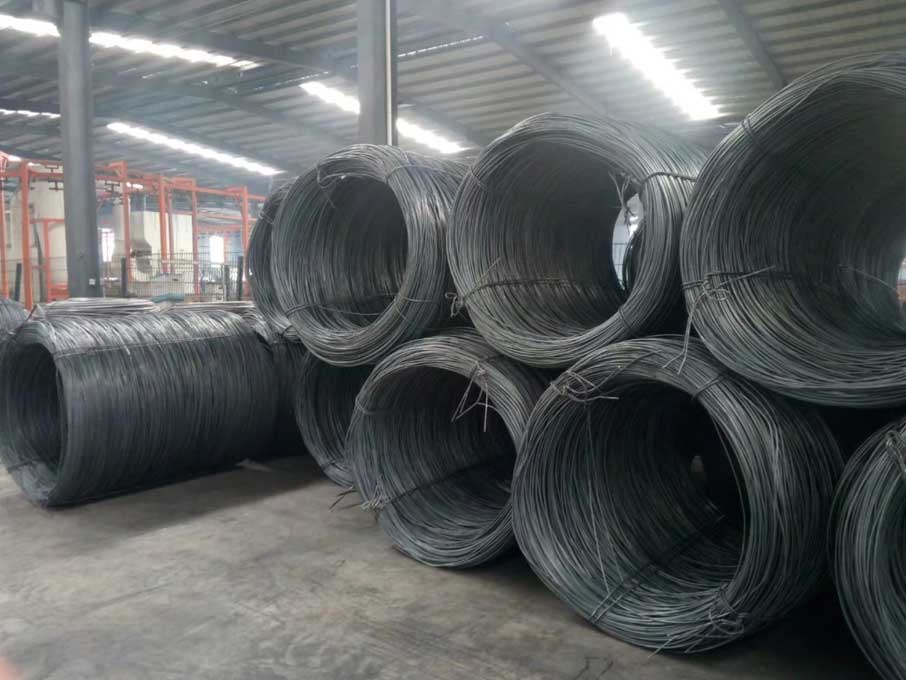

|Firstly, Purchase wire rod from steel factory||Secondly, Test the raw material tensile strength|

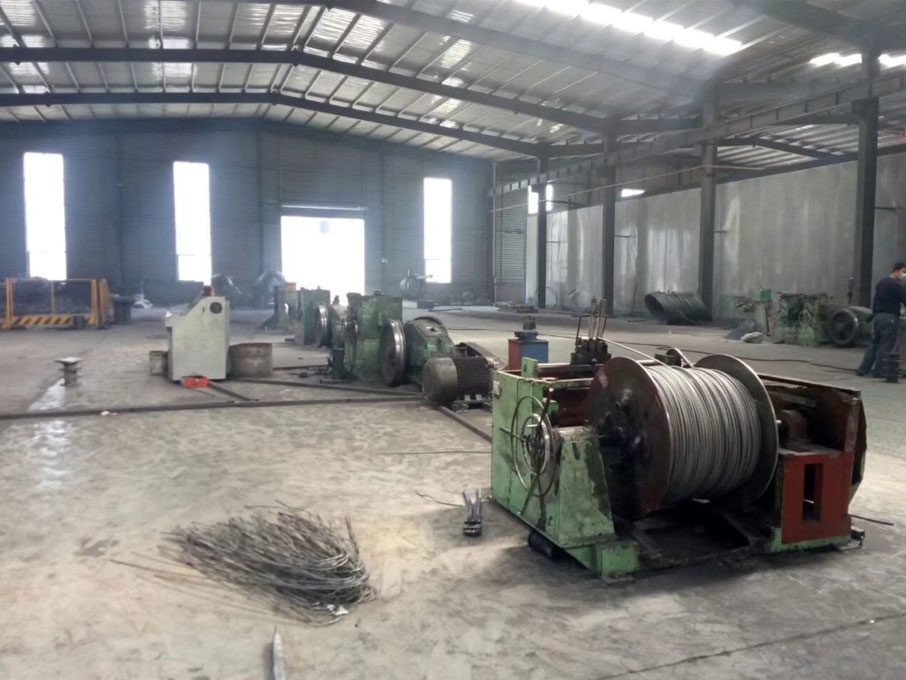

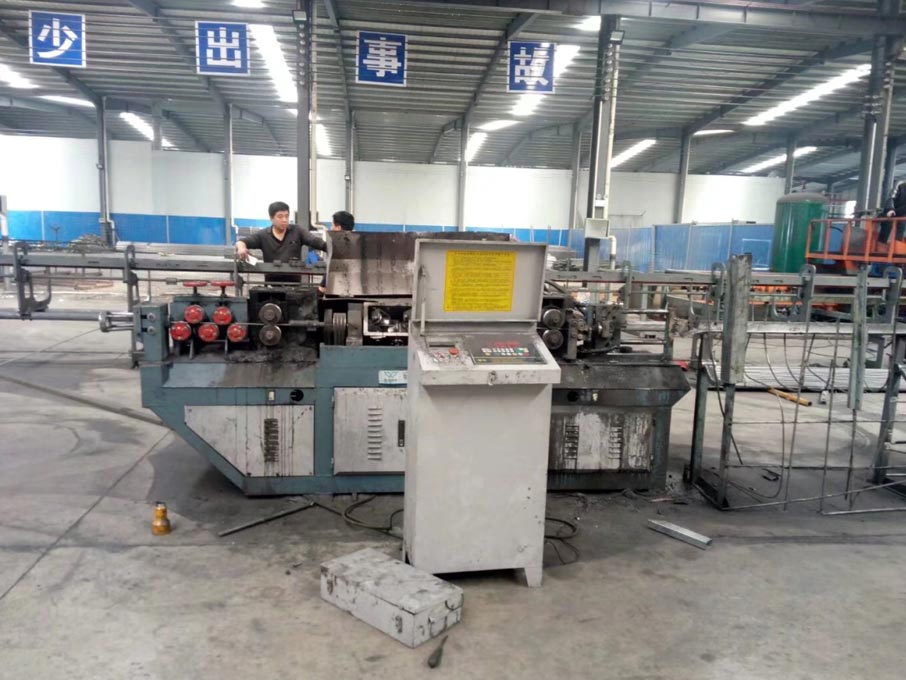

|Thirdly, drawing wire diameter as per contract||Fourthly, Straight and Cutting wire as per contract|

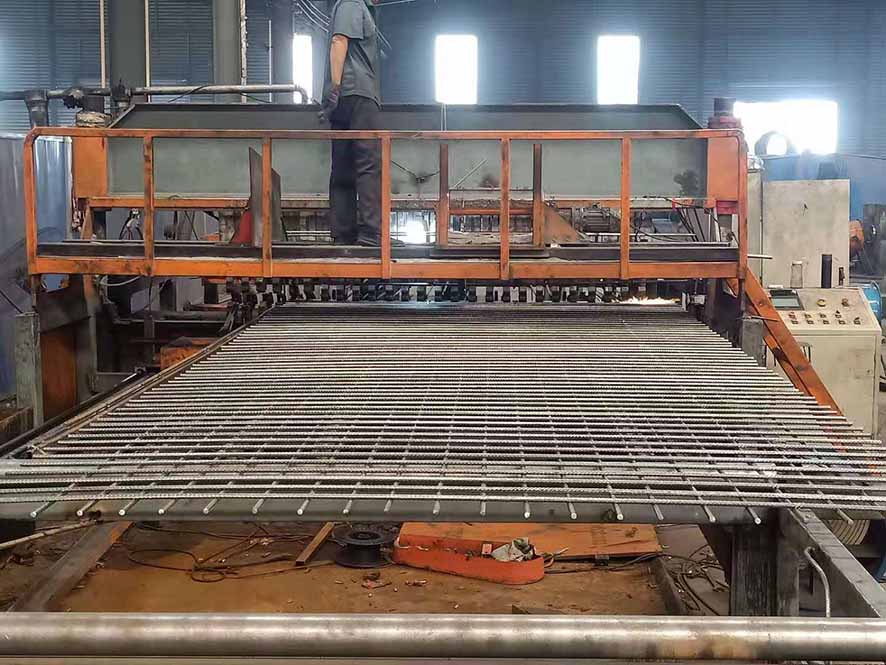

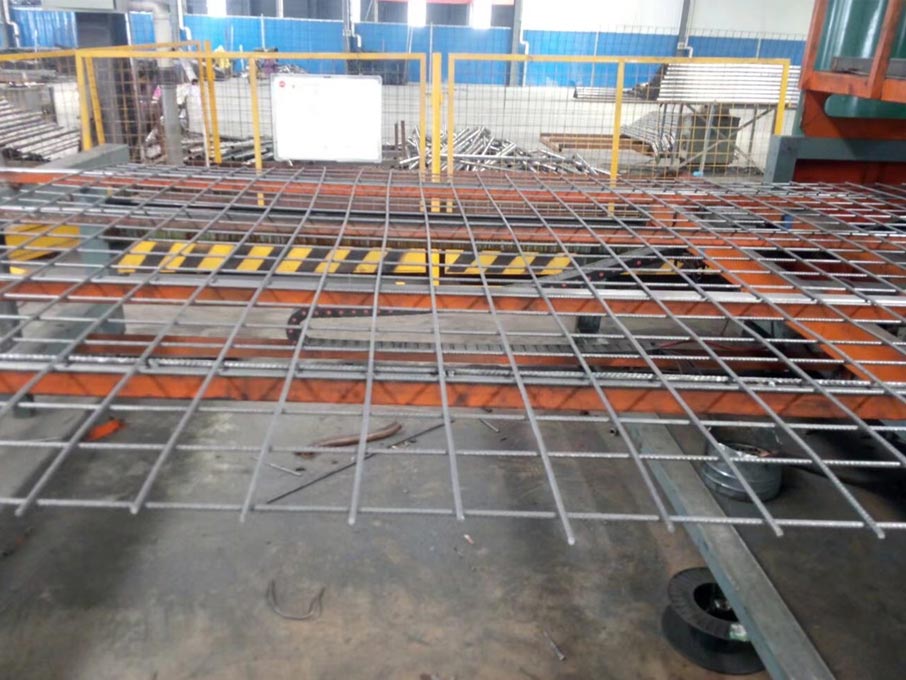

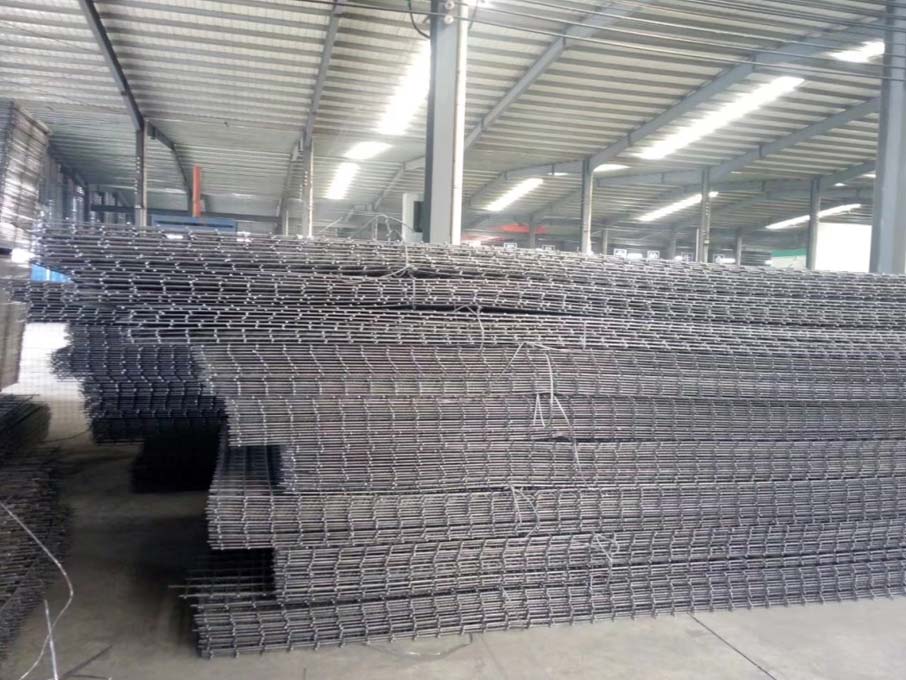

|Fifthly, The reinforcement steel mesh welded by automatic and electric resistance machine||After finished producing, the reinforcement steel mesh has a good condition storage.|

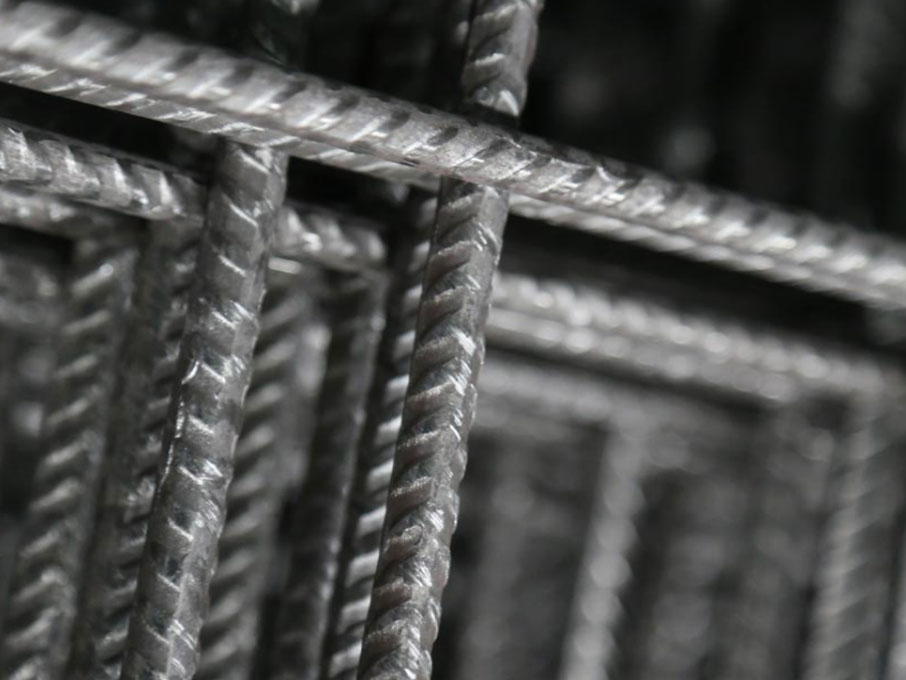

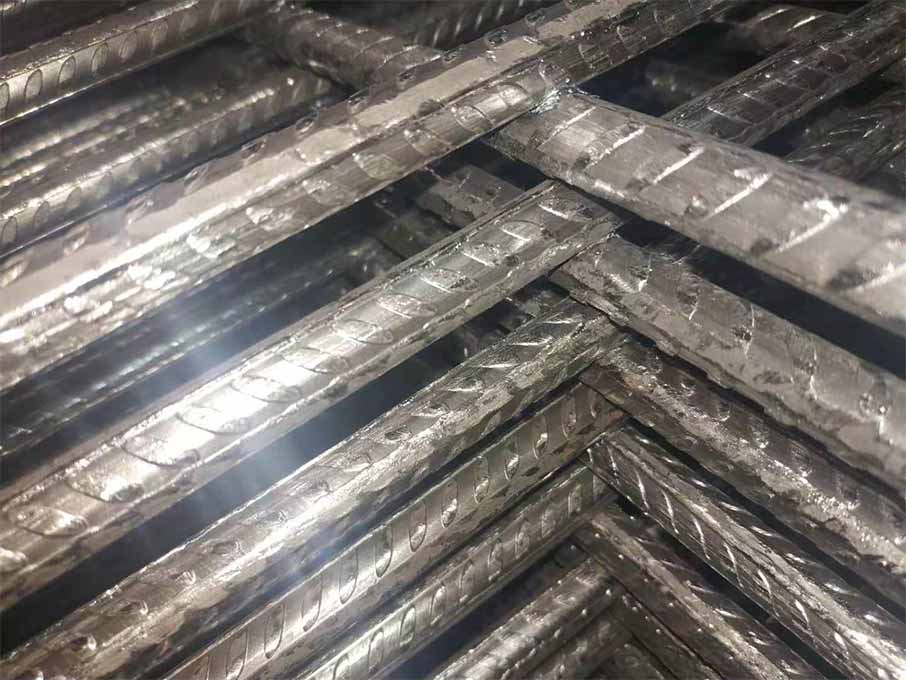

|Clearly and visible notches||Firmly and strong solid joint|

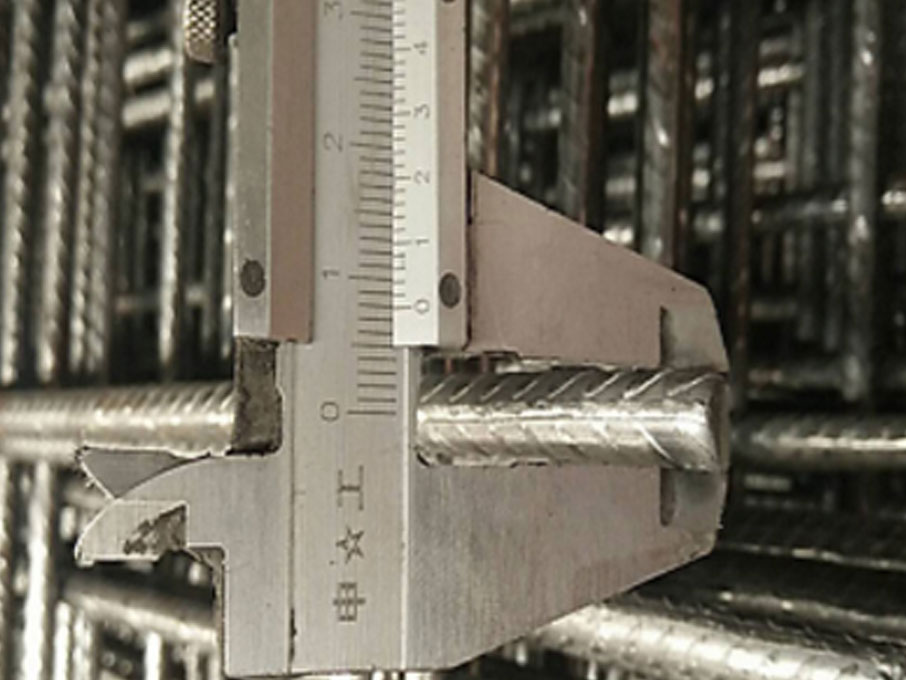

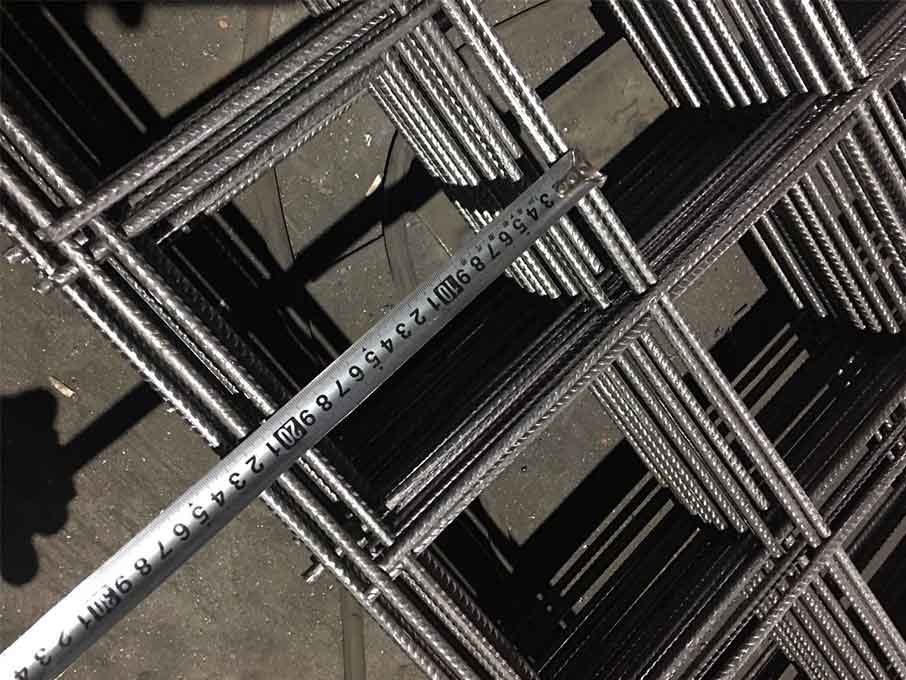

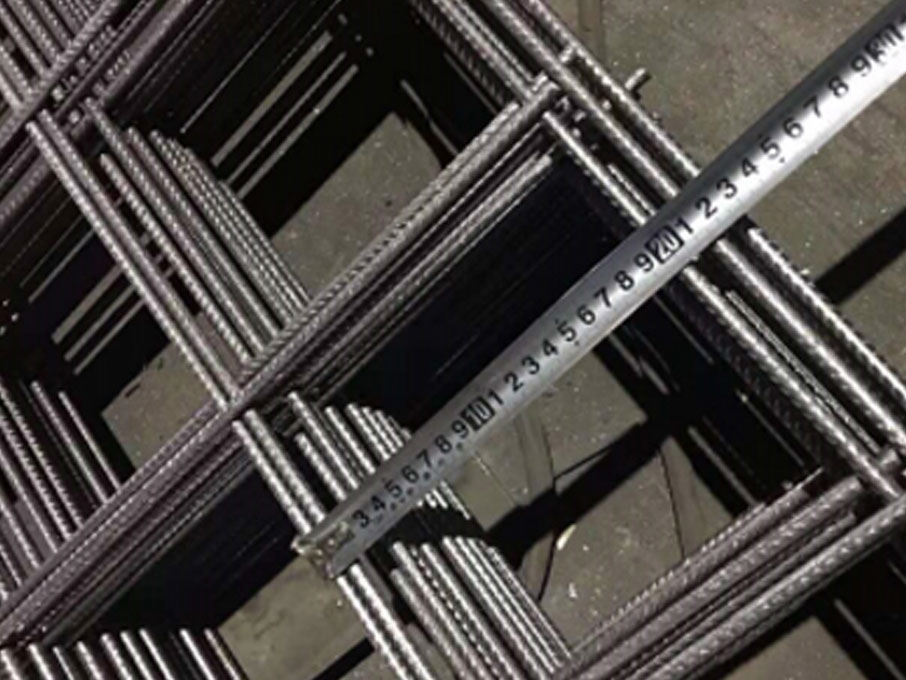

|Messured wire diameter of reinforcement steel mesh||Messured mesh space of reinfocement steel mesh|
