Reinforcing Construction Mesh used for variours load-bearing wall

Reinforcing Construction Mesh used for variours load-bearing wall, non-load-bearing wall, floor slab and balcony

PRODUCT DESCRIPTION

Reinforcing Construction Mesh used for variours load-bearing wall, non-load-bearing wall, floor slab and balcony

Reinforcing construction mesh is welded by cold drawn low carbon steel wire, which feature includes welding spot firm,proper stucture,mesh size uniform etc. Reinforcing construction mesh is kind of special mesh panel for floor heating in construction industry.

Our products advantage:

It can expand the 10%-15% usable area of construction building,heat insulation, sound insulation,seismic resistance,waterproof, construction simply,light weight and so on, it greatly reduce the cost of construction and shorten time at the same time.

Material of reinforcing construction mesh::Low carbon steel wire, iron wire,stainless steel wire

Surface treatment:

Reinforcing Construction Mesh used for variours load-bearing wallReinforcing Construction Mesh used for variours load-bearing wall

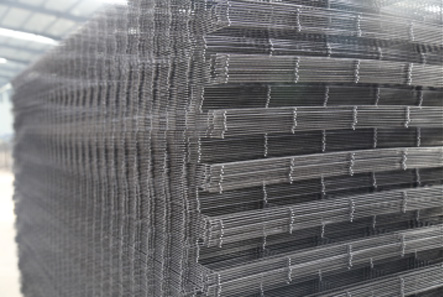

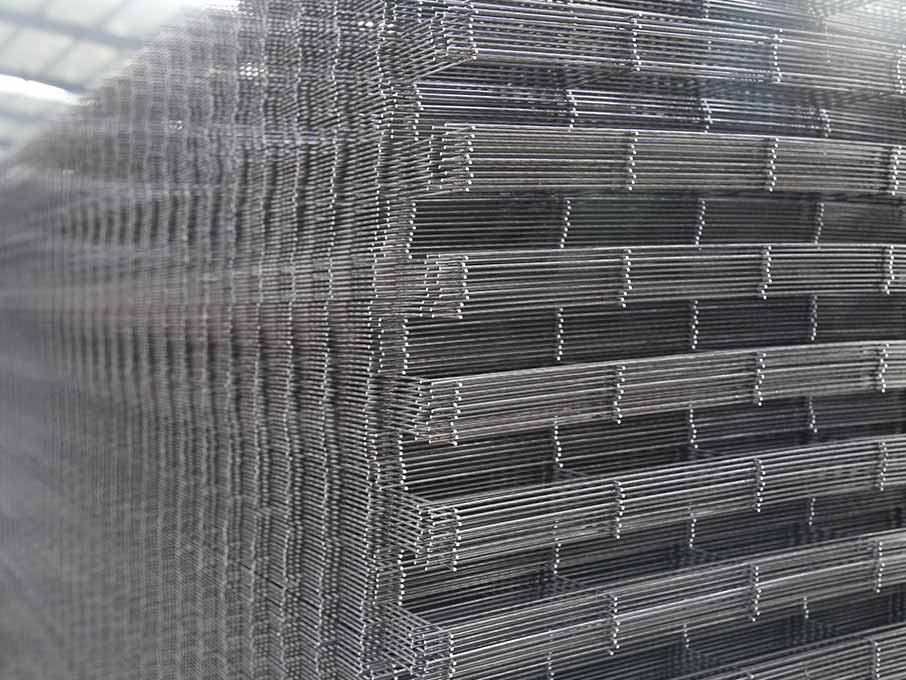

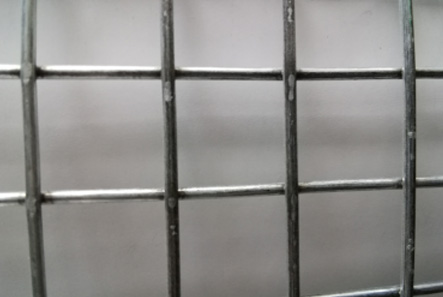

Black bright steel wire meshElectro galvanized steel wire mesh before welding
Reinforcing Construction Mesh used for variours load-bearing wallReinforcing Construction Mesh used for variours load-bearing wall

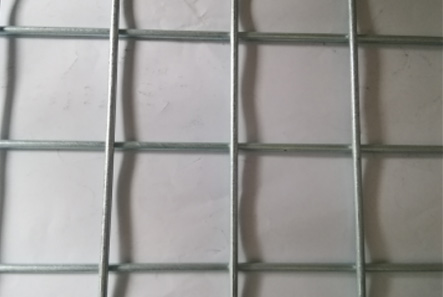

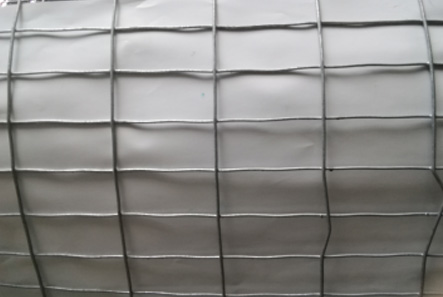

Electro galvanized steel wire mesh after weldedHot dipped galvanized steel wire mesh before welding
Reinforcing Construction Mesh used for variours load-bearing wallReinforcing Construction Mesh used for variours load-bearing wall

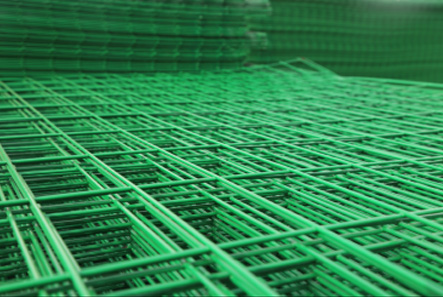

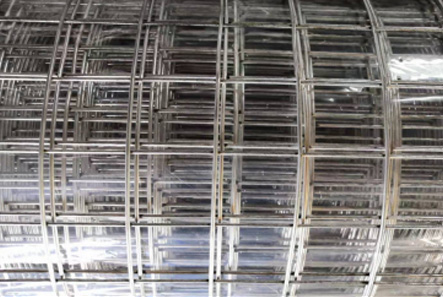

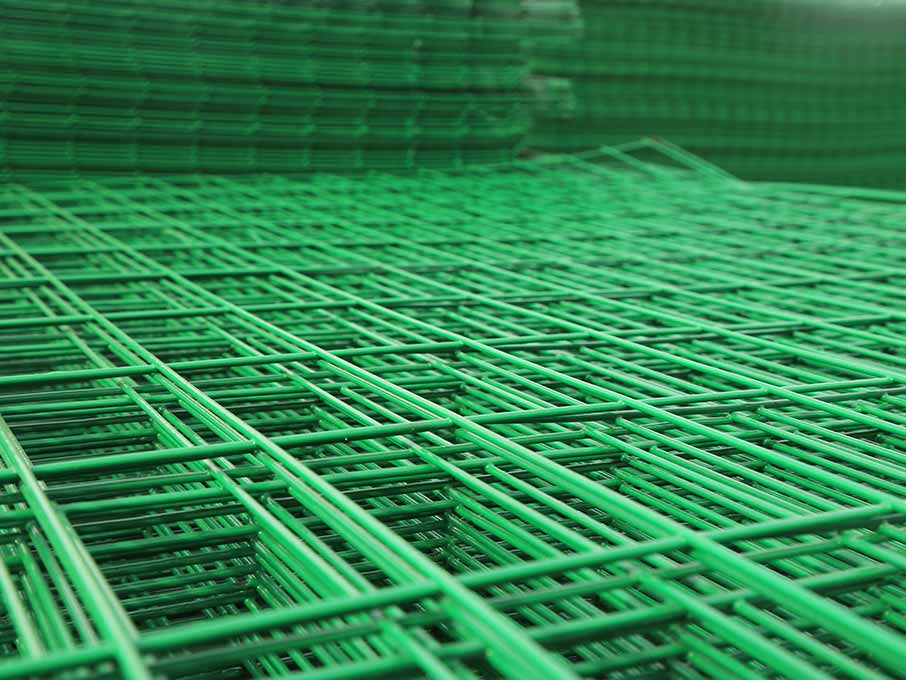

Hot dipped galvanized steel wire mesh after weldedPVC coated steel wire meshPowder painted steel wire mesh


Characteristic:

Strong Anti-corrosion and anti-oxidation

Application:

Used for mechanical protection, industry, agriculture, construction, etc


The specification of Reinforcing Construction Mesh

Reinforcing Construction Mesh
WxLWire diameter(MM)Mesh size (MM)Weight (KG)40HQ loading quantity(Pieces)
1M×2M1.8050×501.713400
1M×2M1.9050×501.912700
1M×2M2.0050×502.112000
1.2M×2.4M1.8050×502.455600
1.2M×2.4M1.9050×502.735300
1.2M×2.4M2.0050×503.025000
1.2M×3M1.8050×503.024500
1.2M×3M1.9050×503.374240
1.2M×3M2.0050×503.734000
1.25M×6M1.8050×506.382240
1.25M×6M1.9050×507.132120
1.25M×6M2.0050×507.872000
1.5M×6M1.8050×507.652240
1.5M×6M1.9050×508.552120
1.5M×6M2.0050×509.452000
Note:Special specification can be custom-made
