Heavy duty welded wire mesh

Concrete reinforced Welded steel mesh used on highway and road subgrade, building foundation, mine and tunnel support and reinforced

PRODUCT DESCRIPTION

Concrete Reinforced Welded Steel Mesh and Heavy Duty Welded Wire Mesh

Concrete reinforced welded steel mesh called concrete reinforcing welded steel wire mesh, reinforcing mesh, reinforcement mesh. And widely used on highway and road subgrade, building foundation,mine and tunnel support and reinforced.

Heavy duty welded wire mesh is known as a new type high efficiency and high quality of concrete reinforced construction steel structure in domestic market and abroad, which is widely used in the floor slab, roof, wall, floor, concrete pavement, bridge pavement, airport runway, tunnel lining, cement duct, concrete pillar and other aspects.



Heavy duty welded wire mesh

Material of Concrete Reinforced Welded Steel Mesh

Q195, CRB550; CRB600H, HPB235, HPB300, HRB400

Product Standard of concrete reinforced welded steel mesh: JGJT 114-97

concrete reinforced welded mesh with ribbed's standard value of tensile strength fstk (N/sqmm):

550N / sqmm

concrete reinforced welded mesh with smooth plain wire's standard value of tensile strength fstk (N/sqmm): 510N / sqmm

concrete reinforced welded mesh with ribbed's design value of tensile strength of: 360N / sqmm

concrete reinforced welded mesh with plain wire's design value of tensile strength: 360N/sqmm


Export Information

Export concrete reinforced Welded steel mesh's size: 2.2m * 5.8m or 2.2m * 11.8m.

HS code: 73143100

Packing: 1ton more or less per bundle

A 40HQ container can load 26tons


Contact Us to Buy

Heyou Wire Mesh has 14 years of experience in producing concrete reinforced welded mesh and heavy-duty welded mesh. We can design a construction plan based on your actual situation and provide technical support for physical performance measurement to ensure that it can perfectly meet your needs.

And we provide 24-hour online after-sales service. Products are third-party inspected before shipping. Our products are exported to countries and regions such as Australia, Europe, America, the Middle East, Africa and Southeast Asia.

If you need to purchase such products please feel free to contact us.


The Details of Concrete Reinforced Welded Steel Mesh

Heavy duty welded wire meshHeavy duty welded wire mesh

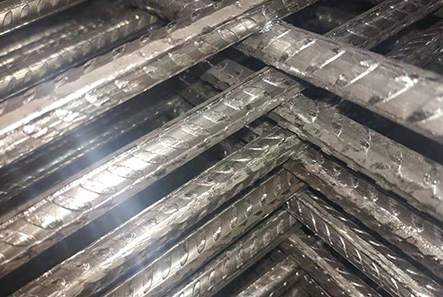

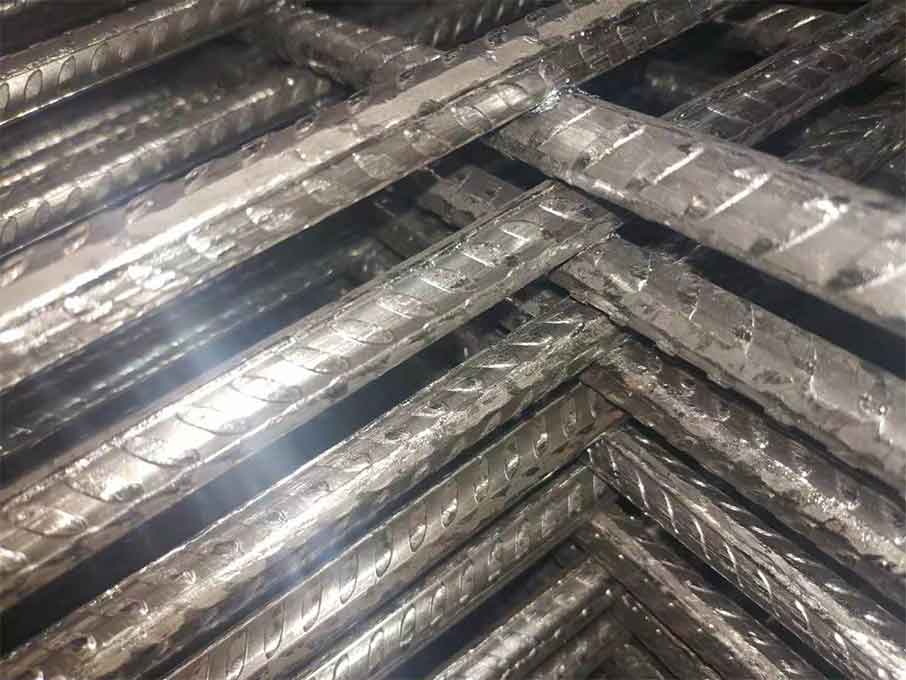

Clearly intendentionnSolid weld spot
Heavy duty welded wire meshHeavy duty welded wire mesh

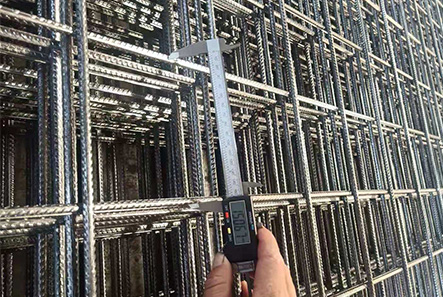

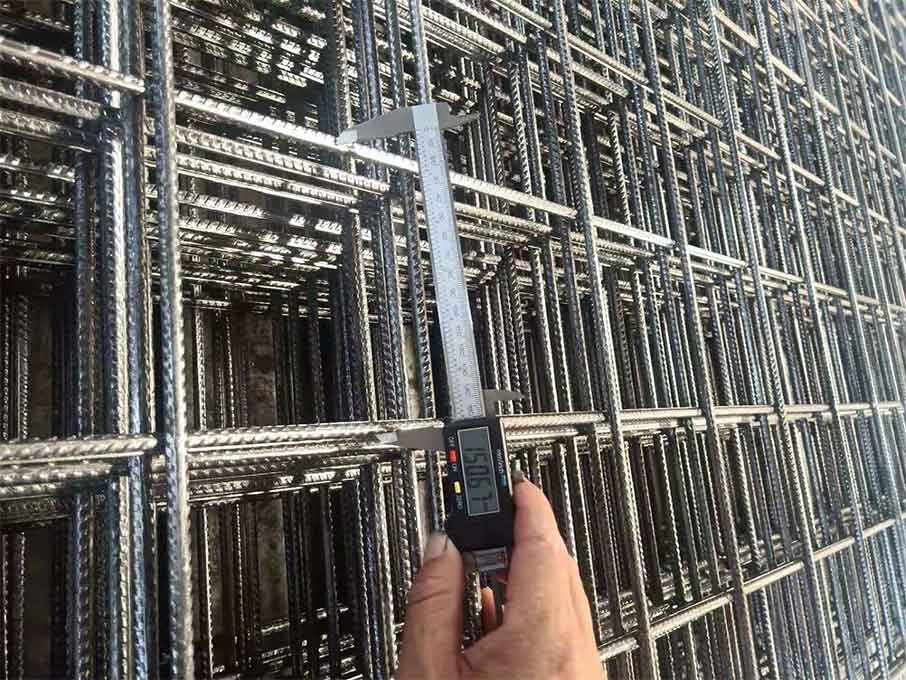

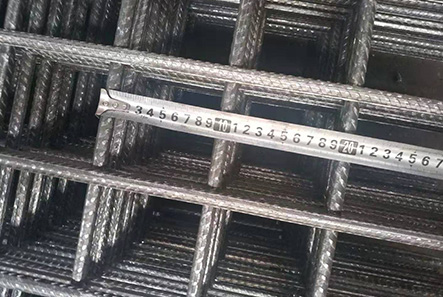

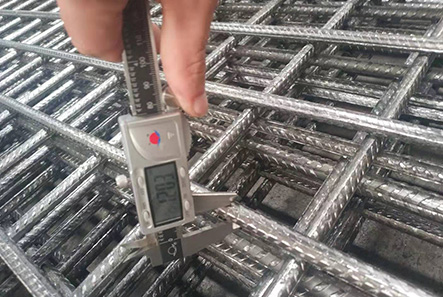

Wire diameter messured by vernier caliperMesh space messured by vernier caliper
Heavy duty welded wire meshHeavy duty welded wire mesh

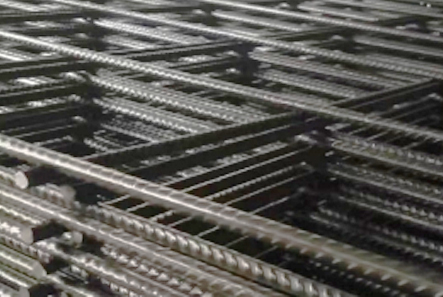

The flat and smooth surface of concrete reinforced Welded steel meshUniform mesh space of concrete reinforced welded steel mesh
Heavy duty welded wire meshHeavy duty welded wire mesh

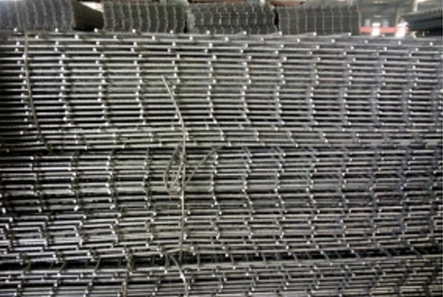

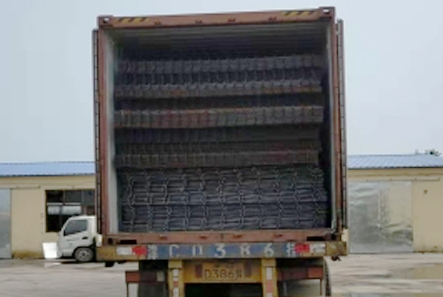

The bundle packingLoading container of concrete reinforced welded steel mesh

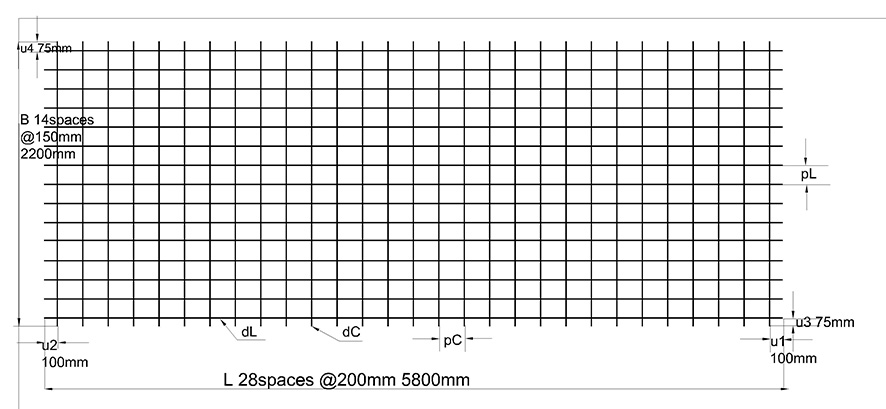

The specification of Concrete Reinforced Welded Steel Mesh

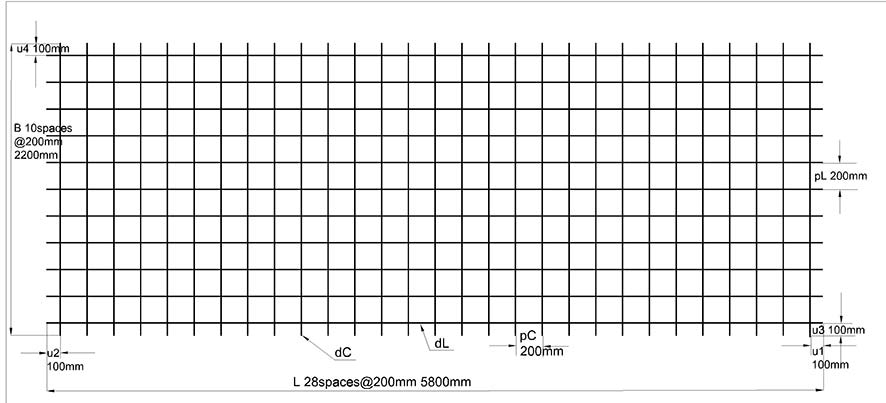

concrete reinforced Welded steel mesh
Mesh modellongitudinal reinforcementtransverse reinforcementWeight (kg / m2)
dL (mm)pL(mm)area per meter (mm2 / m)dC (mm)pC (mm)area per meter (mm2 / m)
A161620010061220056612.34
A14142007701220056610.49
A1212200566122005668.88
A1111200475112004757.46
A1010200393102003936.61
A9920031892003184.99
A8820025282002523.95
A7720019372001933.02
A6620014262001422.22
A55200985200981.54

Heavy duty welded wire mesh
B161610020111020039318.89
B141410015391020039315.19
B12121001131820025210.9
B111110095082002529.43
B101010078582002528.14
B9910063582002526.97
B8810050382002525.93
B7710038572001934.53
B6610028372001933.73
B5510019672001933.05

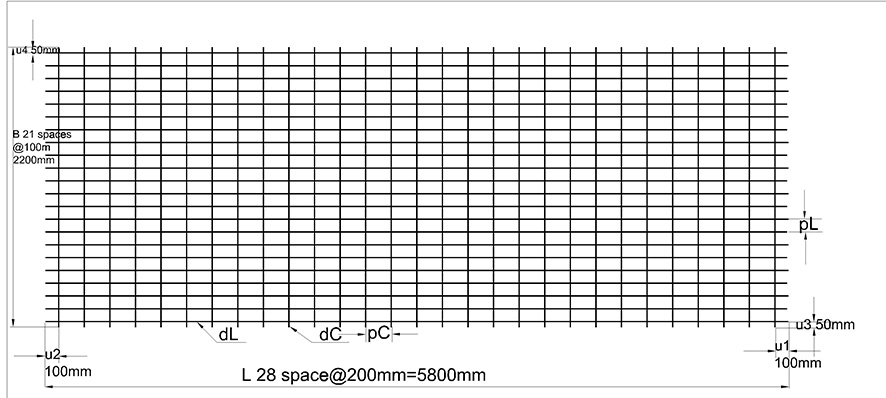

Heavy duty welded wire mesh
C161615013411220056614.98
C141415010271220056612.51
C12121507541220056610.36
C1111150634112004758.7
C1010150523102003937.19
C9915042392003185.82
C8815033582002524.61
C7715025772001933.53
C6615018962001422.6
C551501315200981.8

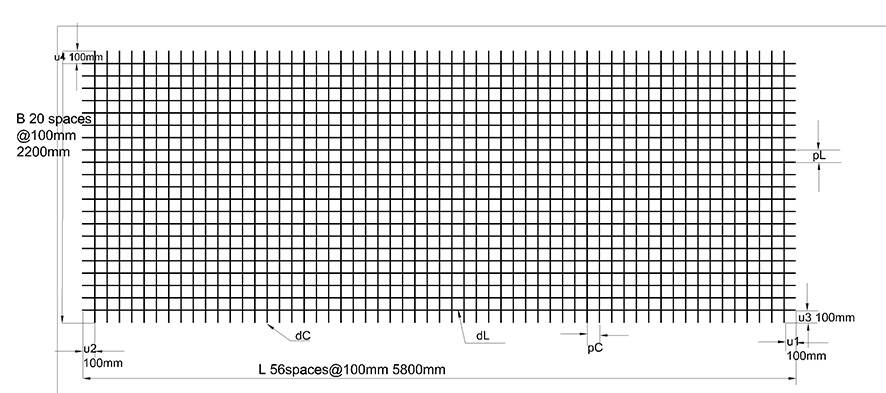

Heavy duty welded wire mesh
D1616100201112100113124.68
D1414100153912100113120.98
D1212100113112100113117.75
D11111009501110095014.92
D10101007851010078512.33
D9910063591006359.98
D8810050381005037.9
D7710038571003856.04
D6610028361002834.44
D5510019651001963.08

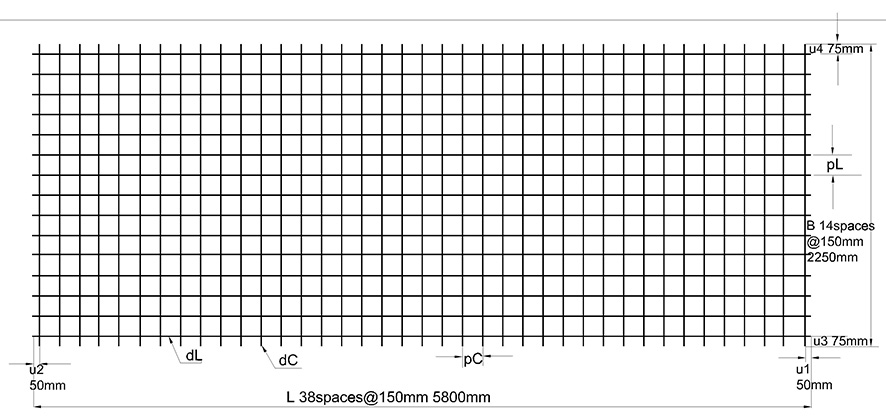

Heavy duty welded wire mesh
E161615013411215075116.46
E141415010271215075413.99
E12121507541215075411.84
E1111150634111506349.95
E1010150523101505238.22
E9915042391504236.66
E8815033581503355.26
E7715025771502574.03
E6615018961501892.96
E5515013151501312.03

Heavy duty welded wire mesh


FAQ

Why dose widely use concrete reinforced Welded steel mesh in the construction site of bulding,road and highway, bridge, aireprt runway, mine and tunnel lining?

It can not only improve earthquake and crack resistance, save steel bar dosage but also reduce construction time and project cost, therefore reinforced welded steel mesh is used widely construction industry.


What kind of packaging method do you use?

Bundle or Pallet.


How long is your delivery time?

15days.


How do I purchase your product?

You can leave us a message on the website or send us an email. Our email address is: sales@hysteelmesh.com.
