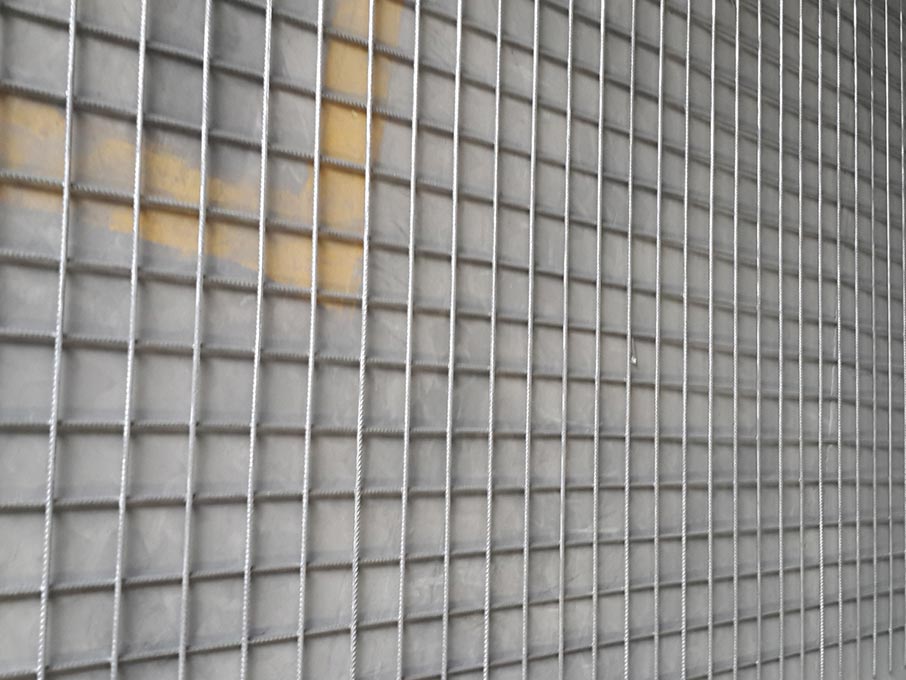

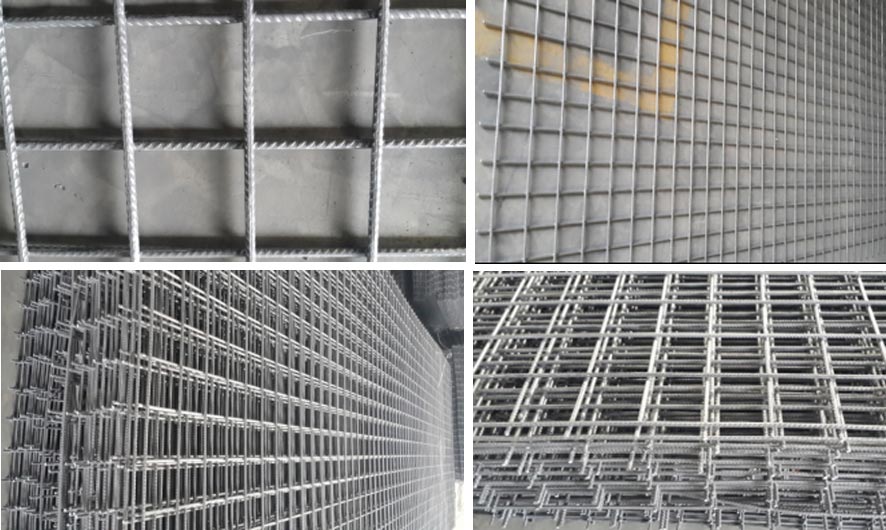

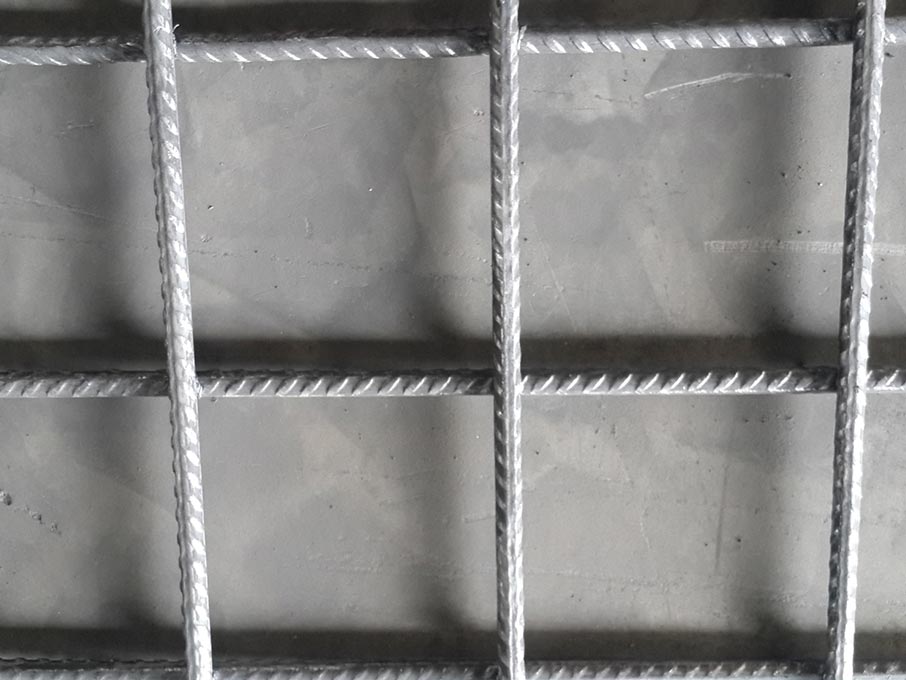

Ground cast steel mesh / slab reinforcing mesh

Heyou wire mesh factory manufactured the Ground cast steel mesh which can reach the National Standard GB / T 1499.3-2010, British Standard BS4483, Australian / New Zealand Standard AS-NZS4671-2001, Osterreichische Norm B4200-7, Germany Standard DIN488, Normes Francaises NFA35-016 and Swiss Standard SIA 16211 S550.

The groud cast steel mesh is used on flooring slab load bearing. this is according to the application classified.

Mesh Space: 100mm x 100mm; 150mm x 150mm; 200mm x 200mm; 100mm x 150mm; 100mm x 200mm; 100mm x 300mm; 200mm x 300mm

Wire diameter: from 5mm to 12mm

Width: 2.2m

Length: 5.8m

Overhang length: from 25mm to 500mm.

A 40HQ container load 26tons
