PRODUCT DESCRIPTION

B5 / B6 / B7 / B8 / B9 / B10 / B11 / B12 / B14 / B16 reinforcing mesh with ribbed

Reforcing mesh is also called welded steel bar mesh, rebar welded wire mesh, rebar mesh, BRC mesh, reinforced mesh panel etc.

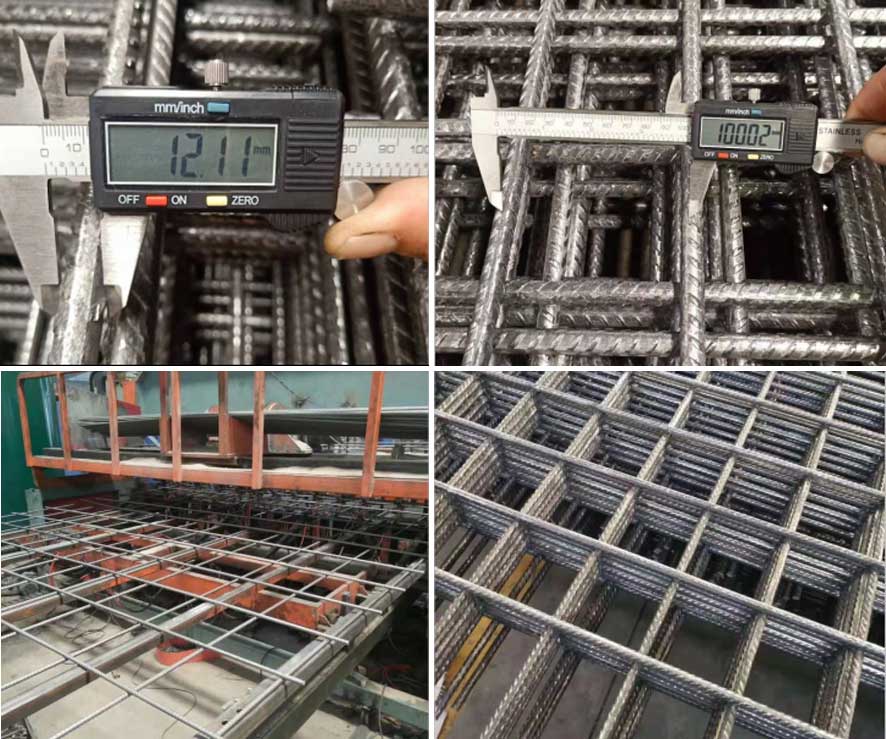

Our reinforcing mesh is welded by GWC welding machine of which the welding procedure is automatically controoled by computer. The aperture is even, quality is good, and the mechanical properties of steel bars are barely chaged before and after welding.

Heyou buy the material of reinforcing mesh (Q195, CRB550; CRB600H, HPB235, HPB300, HRB400) from the steel factory which has good reputation in steel field.

B5 / B6 / B7 / B8 / B9 / B10 / B11 / B12 / B14 / B16 reinforcing mesh with ribbed


Heyou reinforcing mesh was produced according to national standard GB / T1499.3-2010

Heyou factory produce the diameter of reinforcing mesh from 5mm to 16mm, the mesh size is 100x200mm,and our export mesh panle size is 2.2m x 5.8m or 2.2m x 11.8m, our packing is 1ton more less per bundle,a 40HQ container can be loaded 26tons the reinforcing mesh of which HS code:7314200.

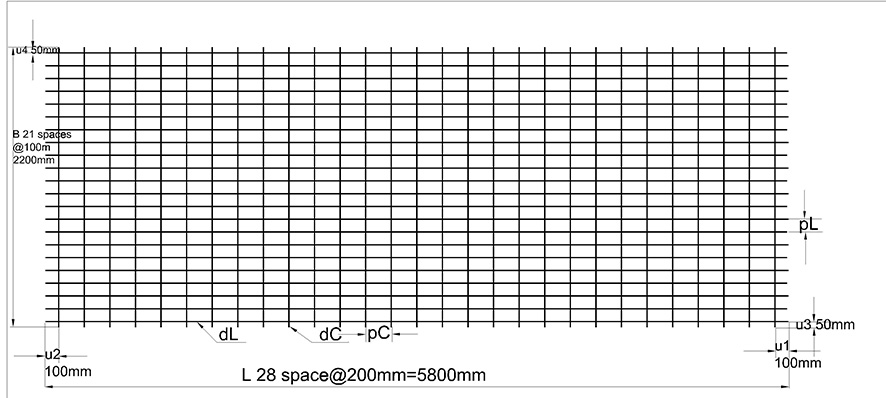

The Drawing of reinforcing mesh with ribbed for B5 / B6 / B7 / B8 / B9 / B10 / B11 / B12 / B14 / B16

B5 / B6 / B7 / B8 / B9 / B10 / B11 / B12 / B14 / B16 reinforcing mesh with ribbed

NL= Number of longitudinal bars

PL= pitch of longitudinal bars

dL= diameter of longitudinal bars

NC=Number of transverse bars

L= length of longitudinal bar

B=Length of transverse bar

u1=Overhang of longitudinal bars

u2=Overhang of longitudinal bars


The specification of reinforcing mesh with ribbed for B5/B6/B7/B8/B9/B10/B11/B12/B14/B16

reinforcing mesh with ribbed
Mesh modellongitudinal reinforcementtransverse reinforcementWeight (kg/m2)
dL (mm)pL (mm)area per meter ( mm2/m)dC (mm)pC(mm)area per meter (mm2 / m)
B161610020111020039318.89
B141410015391020039315.19
B12121001131820025210.9
B111110095082002529.43
B101010078582002528.14
B9910063582002526.97
B8810050382002525.93
B7710038572001934.53
B6610028372001933.73
B5510019672001933.05
