Reinforcing mesh was made by deformed bar after drawn, which is accorded to Australian/New Zealand Standard AS-NZS 4671-2001. The material is 250N, 300E, 500L...

PRODUCT DESCRIPTION

Reinforcing mesh was made by deformed bar after drawn, which is accorded to Australian/New Zealand Standard AS-NZS 4671-2001. The material is 250N, 300E, 500L, 500N and 500E, the mesh spaces is 200mm, there is two sides overhang which is 100mm.

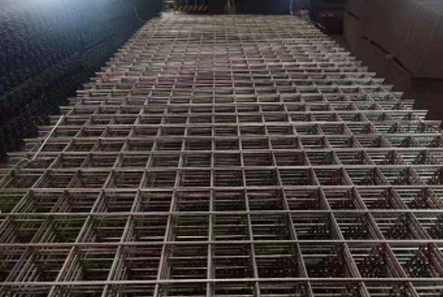

SL52/SL62/SL72/SL82/SL92/SL102/SL81 Square reinforcing meshSL52/SL62/SL72/SL82/SL92/SL102/SL81 Square reinforcing mesh

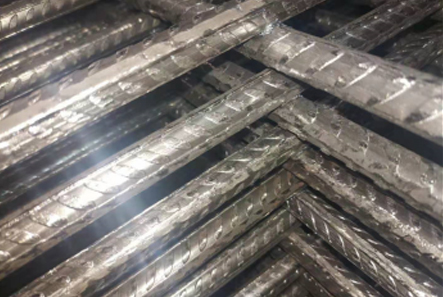

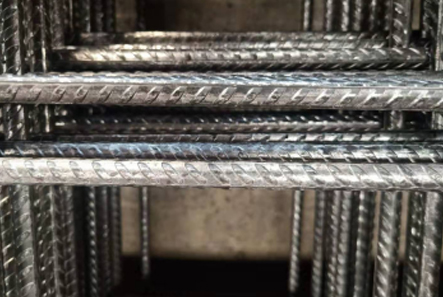

Clearly ribbed on the surfaceFirmly weld spot
SL52/SL62/SL72/SL82/SL92/SL102/SL81 Square reinforcing meshSL52/SL62/SL72/SL82/SL92/SL102/SL81 Square reinforcing mesh

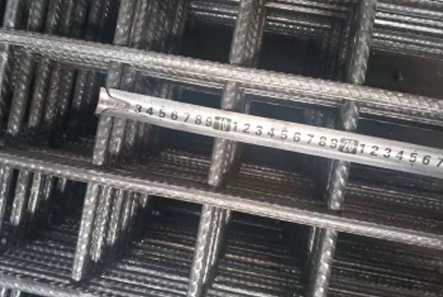

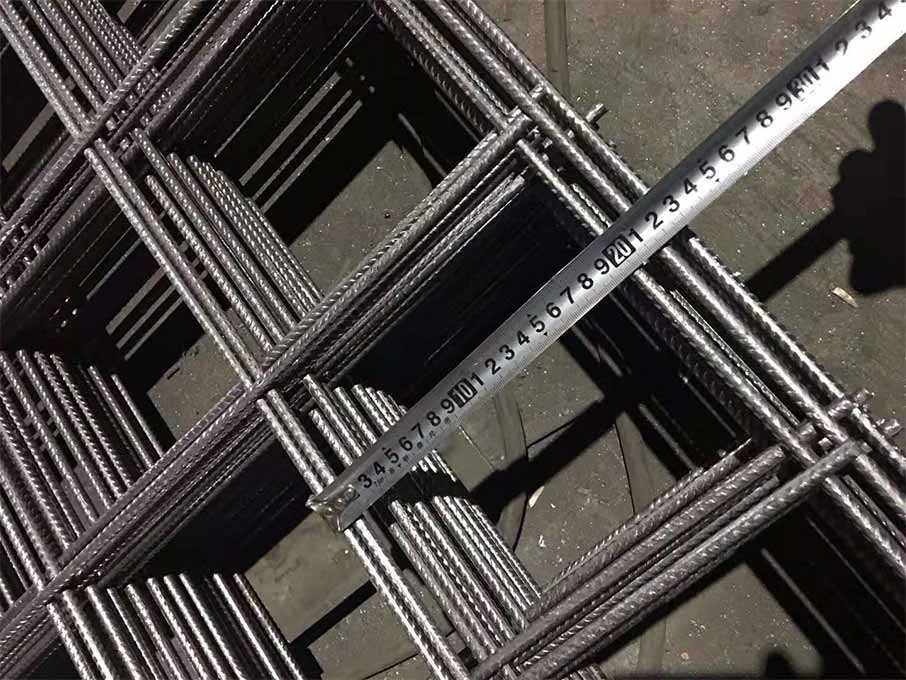

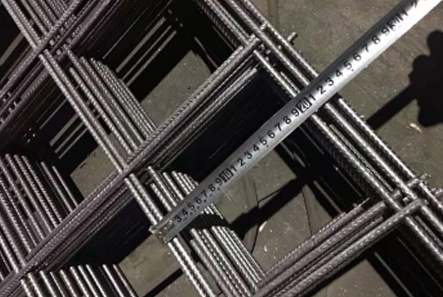

Accurately wire diameterMesh space messured
SL52/SL62/SL72/SL82/SL92/SL102/SL81 Square reinforcing meshSL52/SL62/SL72/SL82/SL92/SL102/SL81 Square reinforcing mesh
Uniform mesh spacesFlat and smooth mesh surface

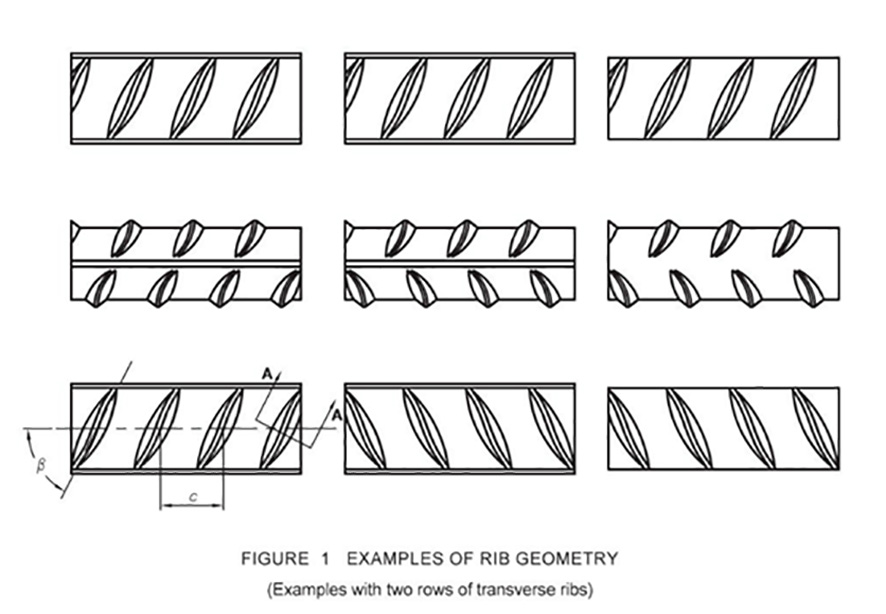

the steel bar after drawing shape as below figure:

1. The angle of the rib or inclined indentation of the reinforcing mesh panels' bar isn't less than 45°. The angle scope is greater than 45° and is less than 70°, the rib height is from 0.025d to 0.10d.

SL52/SL62/SL72/SL82/SL92/SL102/SL81 Square reinforcing mesh

2. The reinforcing mesh panel includes transverse and longitudinal bar, pitch and overhang. The Australian and new zealand's market, the normal panel size is 2.4m*6m.Because of containers size, we always advise our cutomer to make the panel size to be 2.2m*5.8m. It can be easy to be load and save more USD1000 per container for packing and loading cost.

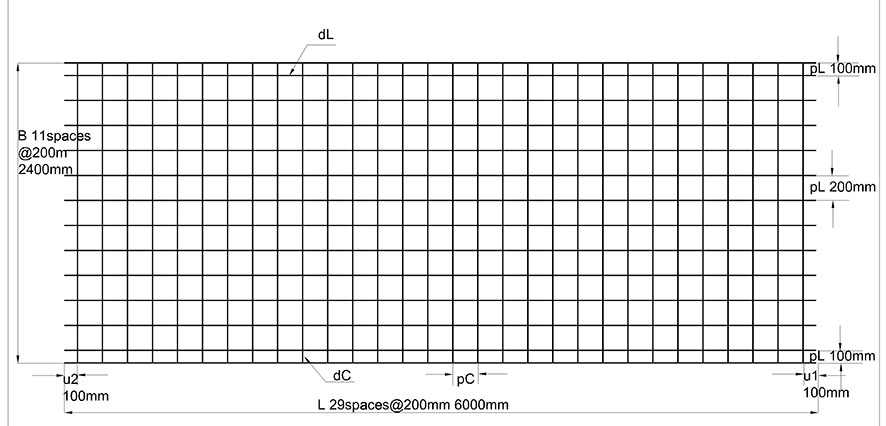

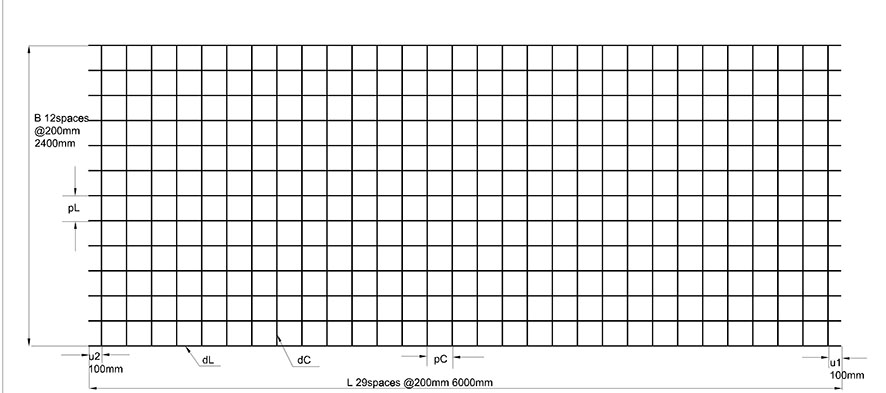

The skatch of reinforcing mesh as below:

SL52/SL62/SL72/SL82/SL92/SL102/SL81 Square reinforcing mesh
SL52/SL62/SL72/SL82/SL92/SL102/SL81 Square reinforcing mesh

NL= Number of longitudinal bars

PL= pitch of longitudinal bars

dL= diameter of longitudinal bars

NC=Number of transverse bars

L= length of longitudinal ba

rB=Length of transverse bar

u1=Overhang of longitudinal bars

u2=Overhang of longitudinal bars


Our products packing and shipment:

SL52/SL62/SL72/SL82/SL92/SL102/SL81 Square reinforcing meshSL52/SL62/SL72/SL82/SL92/SL102/SL81 Square reinforcing mesh

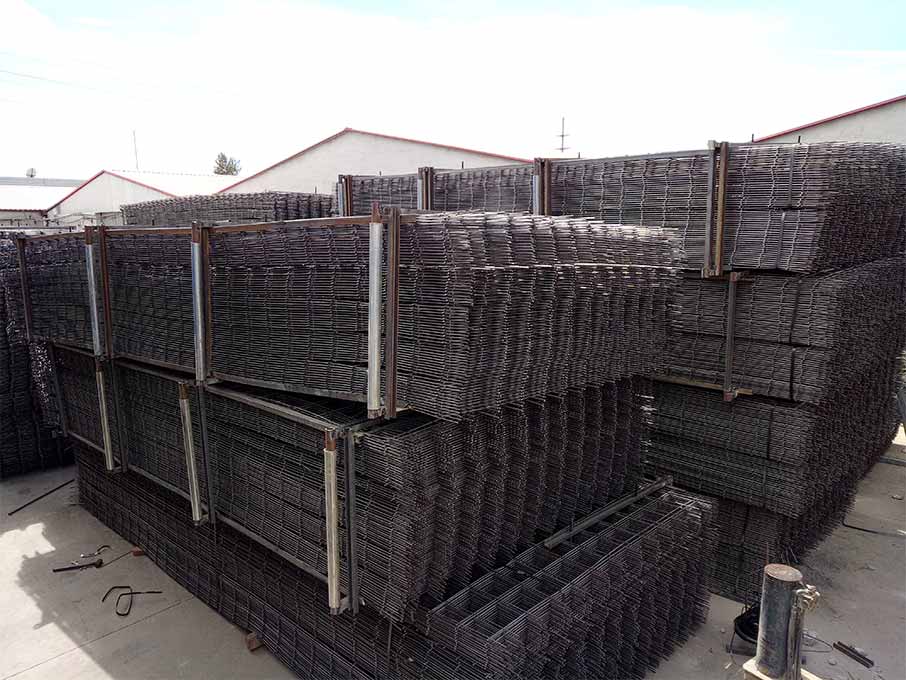

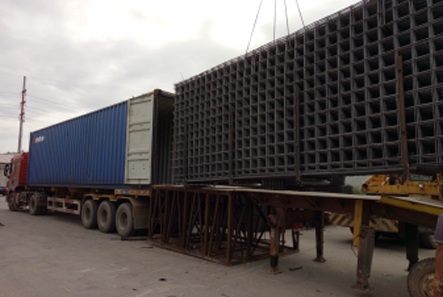

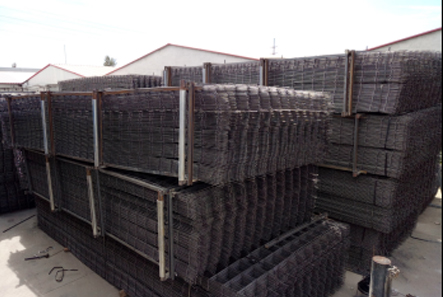

Steel pallet for reinforcing mesh size 2.4m *6mLoading container for reinforcing mesh sheet: 2.4m *6m

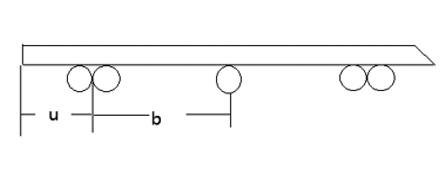

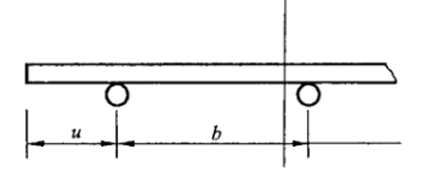

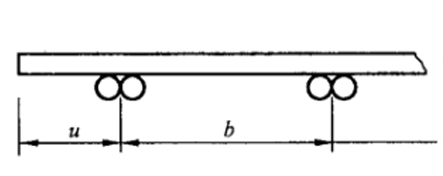

3.Each sheet of reinforcing mesh panel shall include number of bars,pitch,length,width, and overhang dimensions. And the bar arrangement of reinforcing mesh panel has single bars, twin bars or combination of single bars and twin bars.

SL52/SL62/SL72/SL82/SL92/SL102/SL81 Square reinforcing meshSingle bars
SL52/SL62/SL72/SL82/SL92/SL102/SL81 Square reinforcing meshTwin bars
SL52/SL62/SL72/SL82/SL92/SL102/SL81 Square reinforcing meshCombination of single bars and twin bars


4.The technical data of reinforcing mesh panle is contained composition and characteristic mechanical porperties of reinforcing steels.

4.1.1

Table1

Composition of reinforcing steels

Type of analysisChemical composition, % max
All gradesCarbon equivalent value(Ceq)for standard grades
CPS250N500L500N300E500E
Cast analysis0.220.0500.0500.430.390.440.430.49
Products analysis0.240.0550.0550.450.410.460.450.51


4.1.2

Table 2

Characteristic mechanical properties of reinforcing steels

Property250N(Note1)500L(Note1)500N300E(Seismic)500E(Seismic)Type of specified value
Yield Stress(Mpa) RekL RekU≥250---------≥500≤750≥500≤650≥300≤380≥500≤600CvL: p=0.95CvU: p=0.05
Ratio Rm/Re≥1.08---------≥1.03-----------≥1.08--------≥1.15≤1.50≥1.15≤1.40CvL: p=0.90CvU: p=0.10
Unitform Elogation Agt(%)≥5.0≥1.5≥5.0≥15.0≥10.0CvL: p=0.90


Notes:

1. Grade 250N is supplied as plain round reinforcing steel complying with AS 3679. 1, exceptthe tolerance of the diameter and roundness dosen't apply it.

2. For 500L steel bars, only requriement for wire diameter is less than 5.0mm is RekL≥500

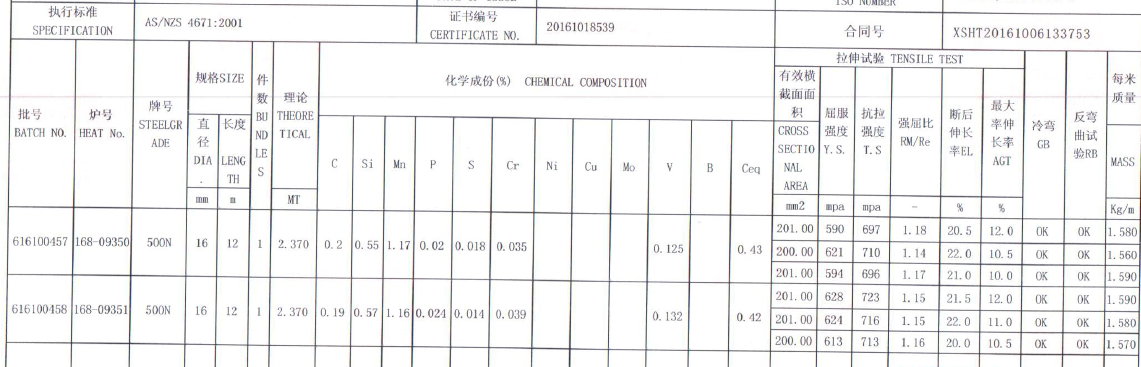

Material certificate of reinforcing mesh as below:

SL52/SL62/SL72/SL82/SL92/SL102/SL81 Square reinforcing mesh


Common size of Squre reinforcing mesh panel for Austialian Market

Mesh Type and reference numberLongitudinal barsCross-barsMass for 6 x2.4 m sheetsCross-sectional area/m width
No. x dia., mmPitch@mmNo. x dia., mmPitch@mmUnit area kg/sqmSheet, kgLong'l bars sqmm/mCross bars sqmm/m
Squre, with edge side-lapping bars
SL10210 x 9.5 + 4 x 6.7520010030 x 9.52005.680354354
SL9210 X 8.6 + 4 X 6.020010030 x 8.62004.666290290
SL8210 x 7.6 + 4 x 6.020010030 x 7.62003.652227227
SL7210 x 6.75 + 4 x 5.020010030 x 6.752002.841179179
SL6210 x 6.0 + 4 x 5.020010030 x 6.02002.233141141
Squre, without edge side - lapping bars
SL8125 X 7.610060 x 7.61007.1105454454


How can we conctrol our products quality for exporting Autralia?

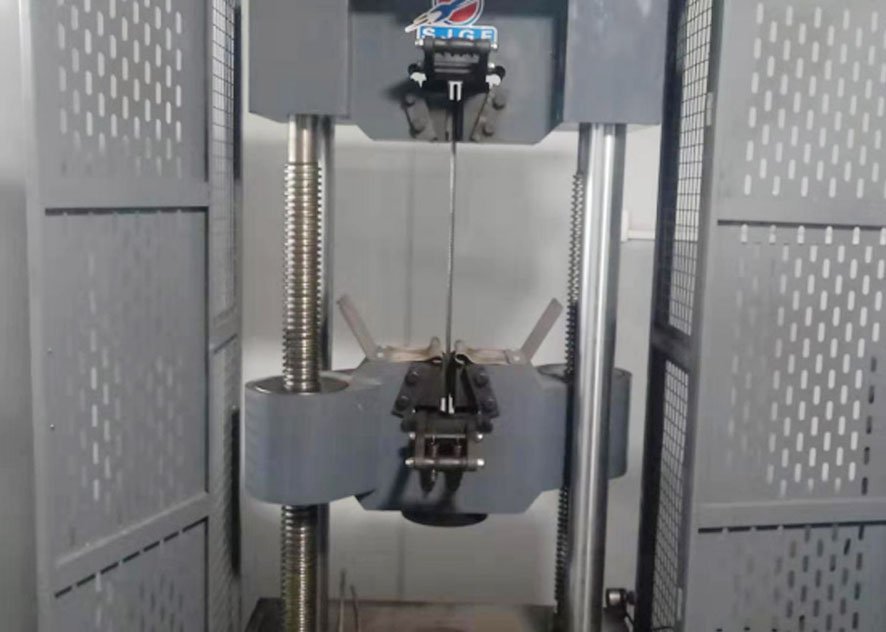

Firstly, we purchase the material from Steel Factory and inspect chemical composition and mechnical property of reinforcing mesh panel in our in-house laboratary according to AS 1554.3.

Secondly, the panel size tolerances meassure way as:

SL52/SL62/SL72/SL82/SL92/SL102/SL81 Square reinforcing mesh

a. Panel Size dimensions≤6m in length, there is 40mm tolerances.

b. Panel size dimensions>6m in length, the tolerance is ±0.7%

c. Wire diameter and mesh size measure and weld shear resistance test conformance to AS NZS  4761-2001 and as per contract.

d. Weigh the each bundle weight to calculate each panel weight.
